Dosing Pump

DOSING TECHNOLOGY

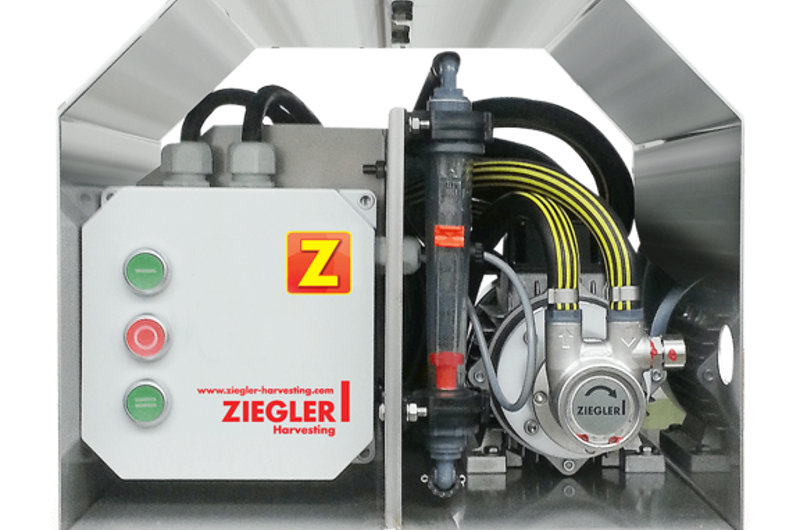

The Dosing Unit PKT serves for the dosing of propionic acid, and the device is also suited for the deployment of media to counter parasite beetles or corn weevils.

Features and Specifications

  • Self-priming pump with shaftless magnetic drive
  • Continuous dosing
  • Acid-resistant material
  • No nutrient loss or substance loss during harvesting
  • Protects against fungi, yeast, and bacteria
  • Max. pressure: 10 bar

Options

  • Flow measurement pipe 15 – 150 l/h
  • Star delta starting (from 5.6 – 7.5 kW)
  • Star delta starting (from 7.6 – 12 kW)

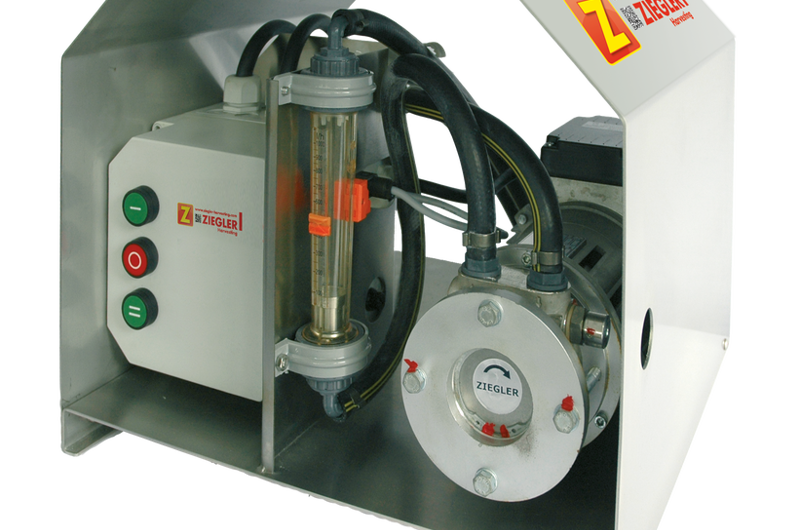

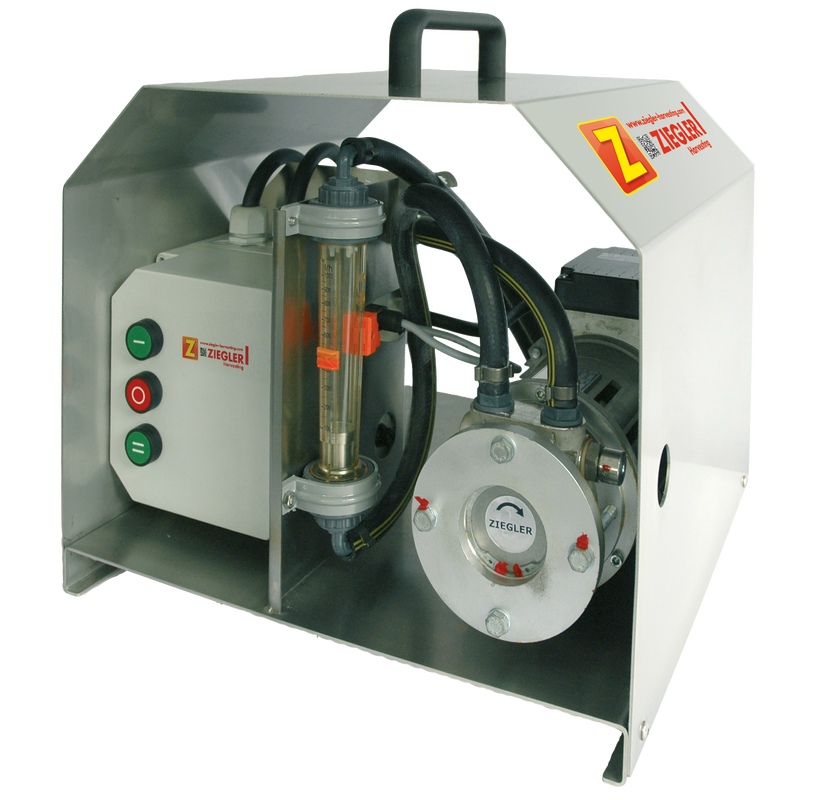

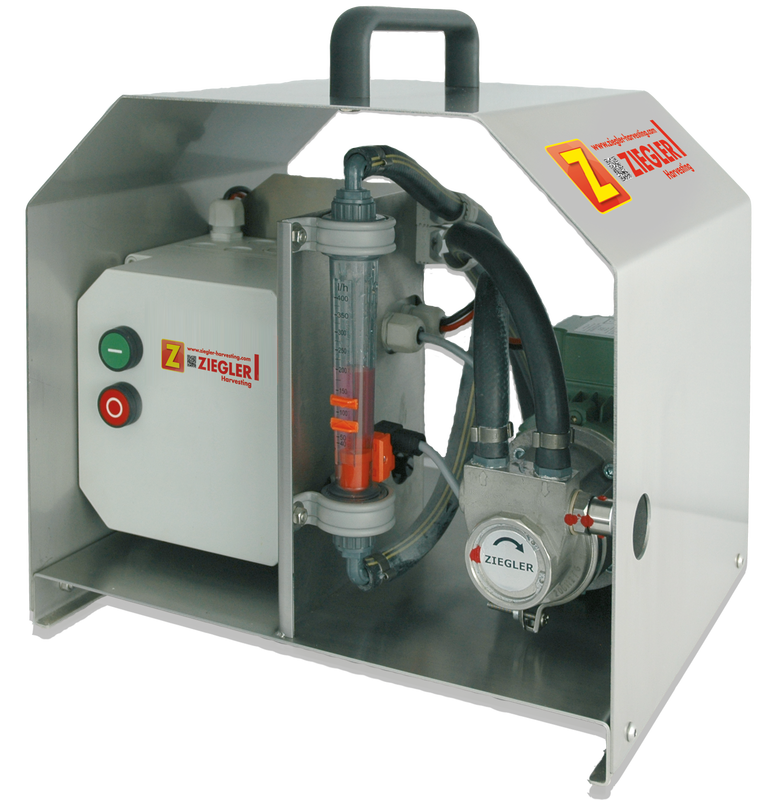

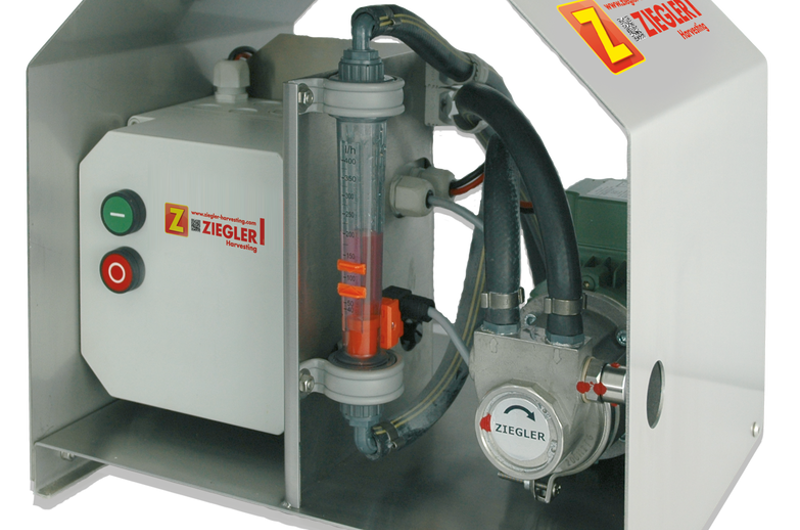

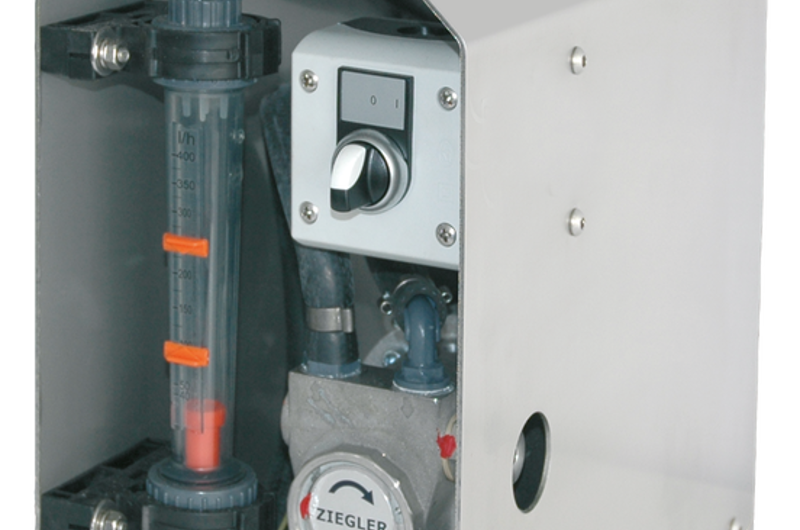

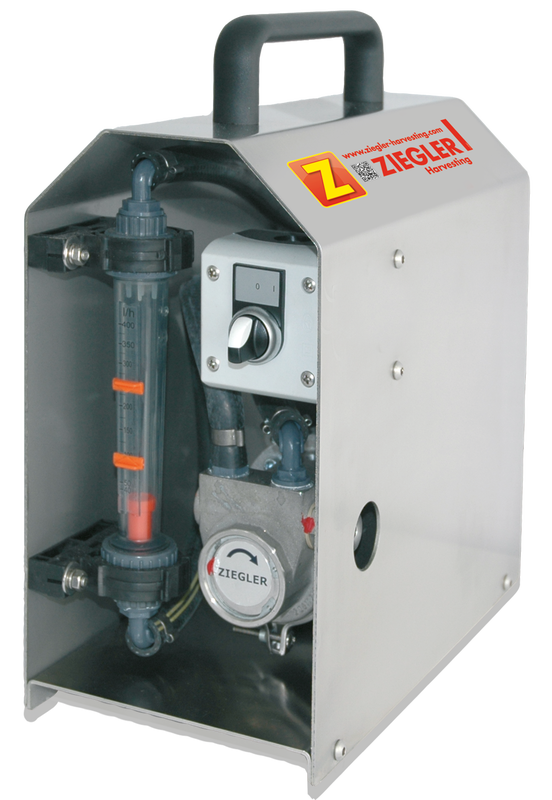

  PKT 270 PKT 450 PKT 452/454 PKT 960
Flow rate, l/h 40-400 40-400 40-400 100-1000
Pump power, l/h max.450 max.450 max.450 max.960
Max.operating pressure, bar 10 10 10 10
Engine power, kW 0.25 0.25 0.25 0.75
Voltage, V 230 40 12V, 24V 400
Width, mm 175 403 403 430
Depth, mm 335 333 333 500
Height, mm 320 400 400 535
Weight, kg 14.5 22 22 41
