Perfect for picking up crops in swaths
-
Stepless drive of the collecting belts, maximum flexibility during harvesting
-
High area output due to high working speed
-
Optional performance damping for highest travel speed with low-loss harvesting
-
Large dimensioned intake auger (perfect for voluminous crop)
-
Swath downholder for very thick-stemmed crop (option)
-
Virtually maintenance-free technology
-
Available for all common combine models
-
With interchangeable frame system for continued use of the pickup when replacing the combine harvester
-
ZIEGLER cutter carriage optionally available

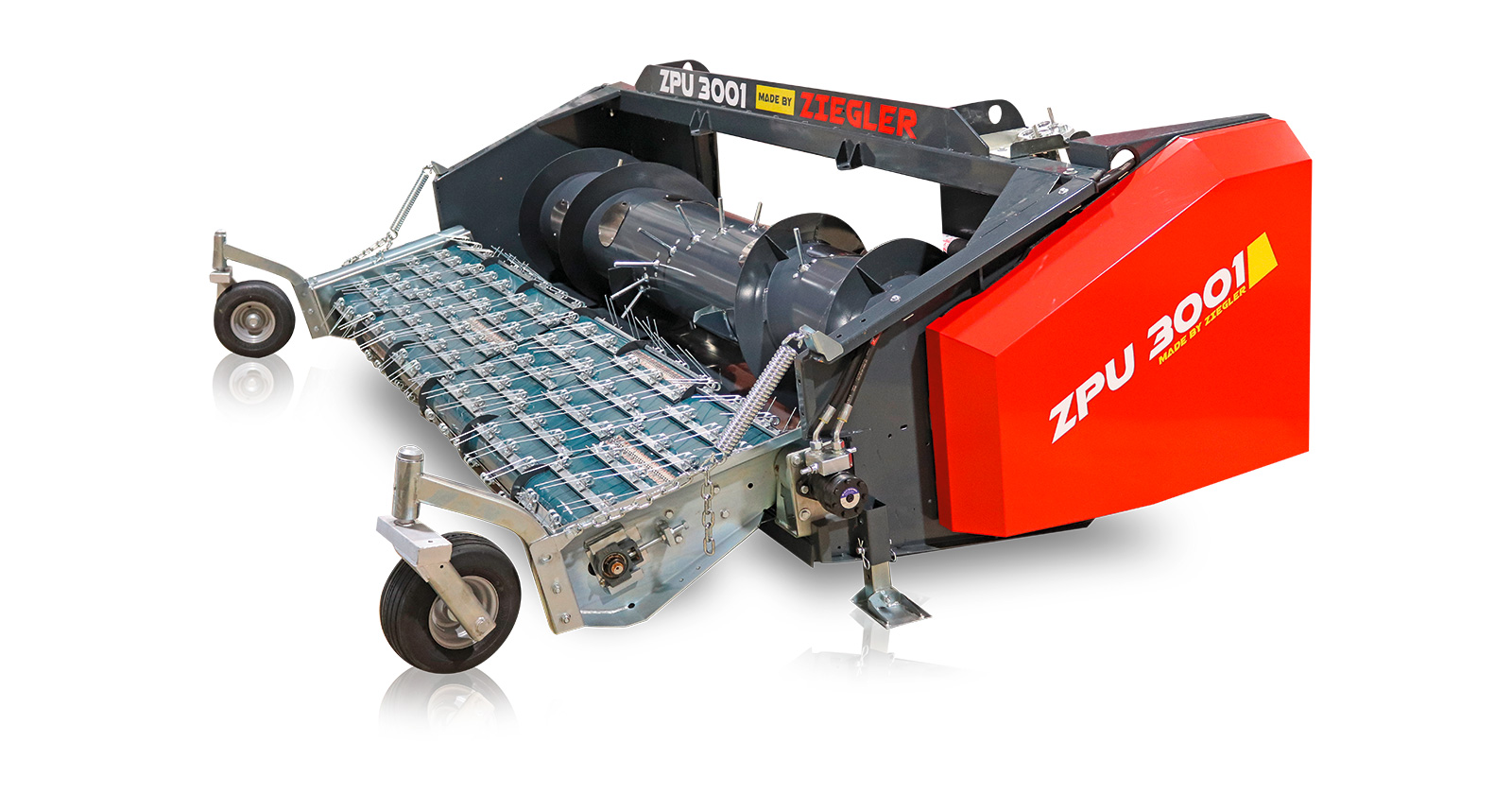

ZPU PICK-UP HEADER

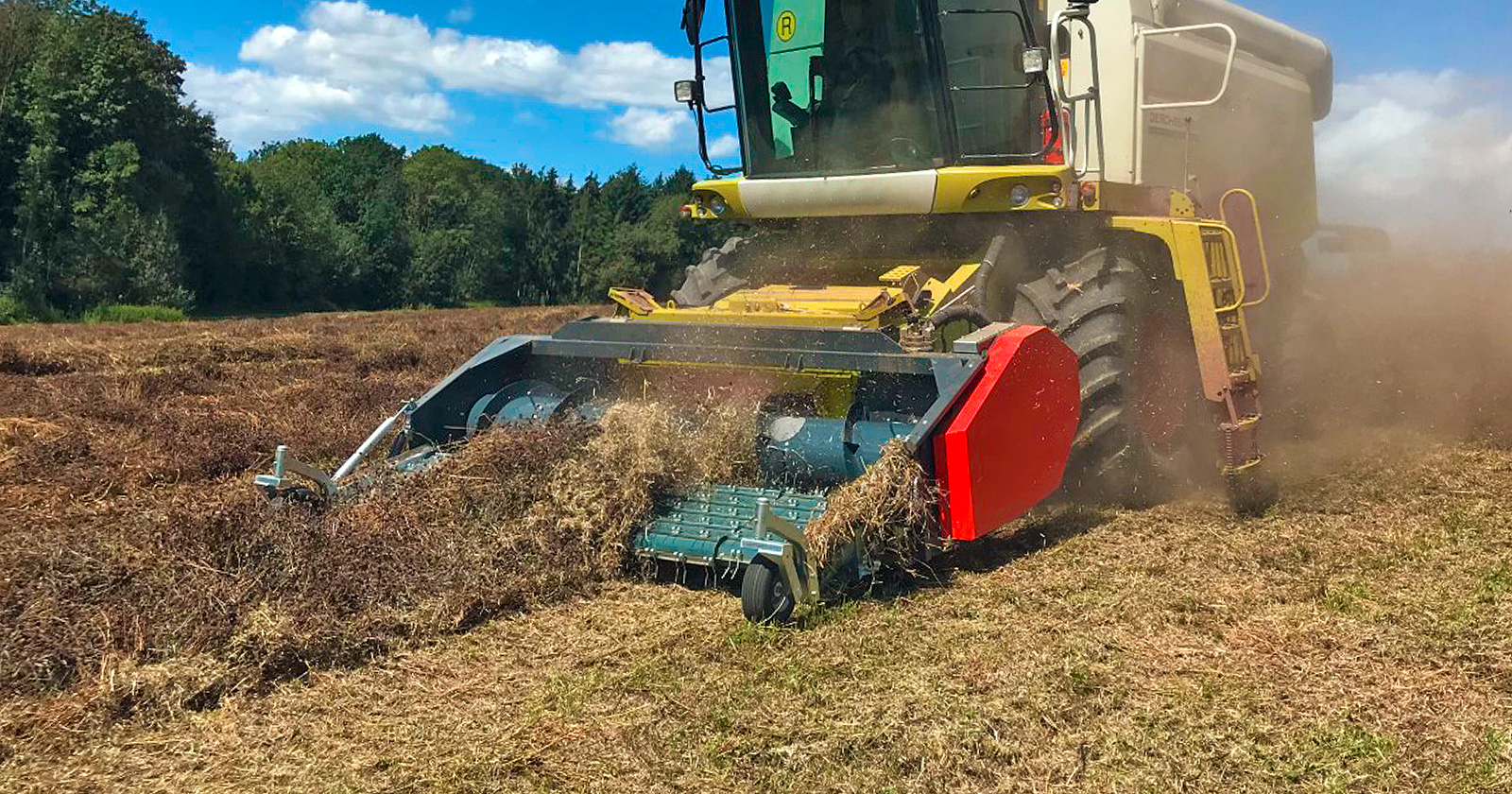

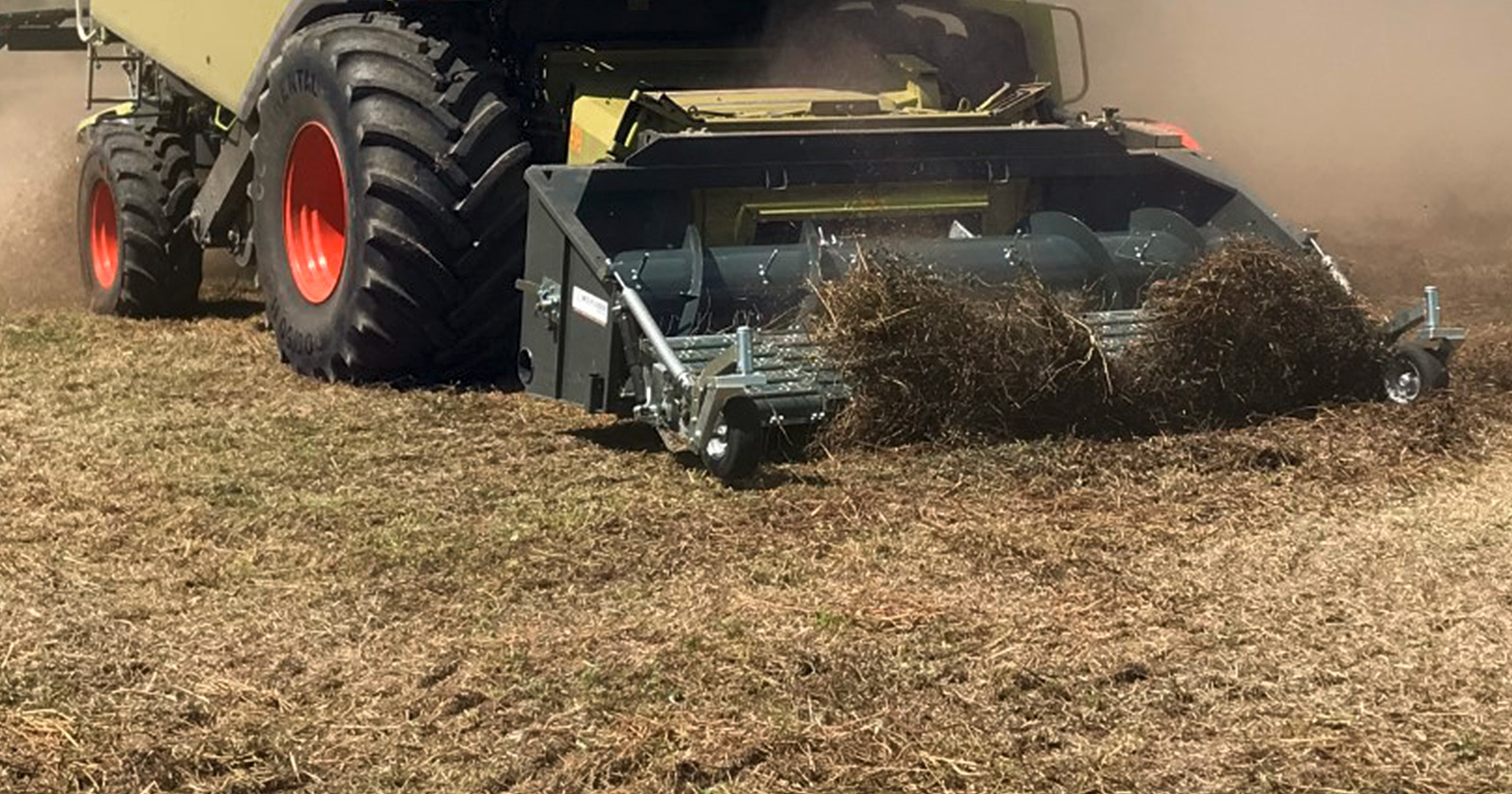

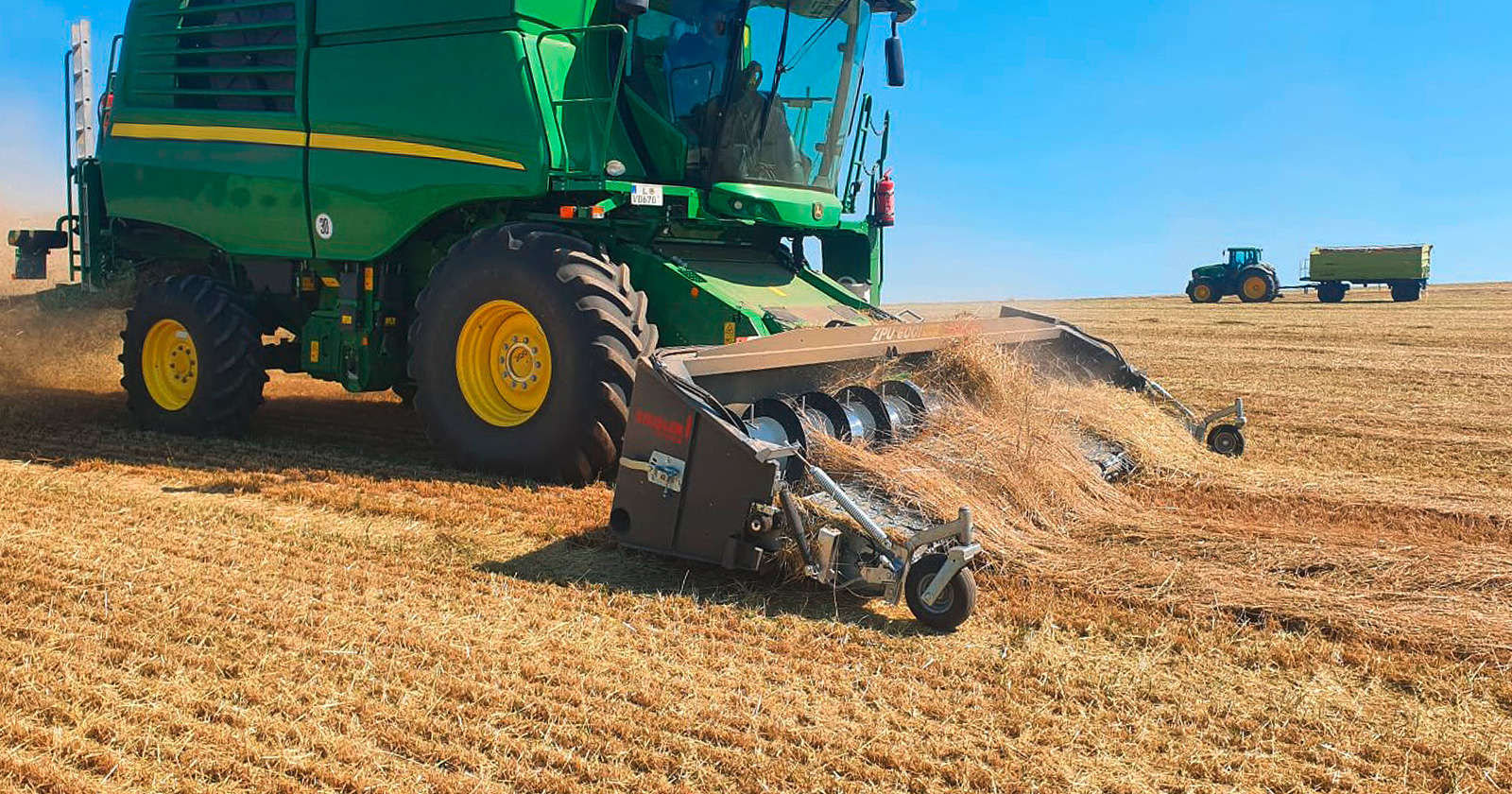

The ZIEGLER Pickup Systems (ZPU) are available in working widths of 3, 4, 5, 6 and 7.4 meters. The ZPUs are perfect for simple and efficient swath collection, such as from clover, grass, rapeseed, peas, beans, lentils, etc. The collection belts are hydraulically driven by the combine’s reel drive and are infinitely adjustable. This significantly increases the performance of the ZIEGLER-ZPU. Each belt has 36 steel tines that are so fine and flexible that they pick up the crop gently and safely, but stones and soil do not. Plastic tines are also available as an option.
The large feed screw has a diameter of 61 cm, the drive is secured by an adjustable friction disc clutch. For voluminous crops such as rapeseed, a hydraulically adjustable swath downholder is also available as an option.
GALLERY
FEATURES AND SPECIFICATIONS
| ZIEGLER ZPU | Working Width | Belts | Tines | Dimensions | Weight |
| 3001 | 3.0m | 6 | 6 x 35 | 3490 x 1400 x 970 mm | 860 kg |
| 4001 | 4.0m | 8 | 8 x 36 | 4650 x 1400 x 970 mm | 1,190 kg |
| 5001 | 5.0m | 10 | 10 x 36 | 5650 x 1400 x 970 mm | 1,550 kg |
| 6001 | 6.0m | 12 | 12 x 36 | 6650 x 1400 x 970 mm | 1,900 kg |
| 3001 Plus | 3.0m | 3 | 3 x 72 | 3490 x 1400 x 970 mm | 850 kg |
| 4001 Plus | 4.0m | 4 | 4 x 72 | 4650 x 1400 x 970 mm | 1.170 kg |
| 5001 Plus | 5.0m | 5 | 5 x 72 | 5650 x 1400 x 970mm | 1.530 kg |
| 6001 Plus | 6.0m | 6 | 6 x 72 | 6650 x 1400 x 970 mm | 1.870 kg |
