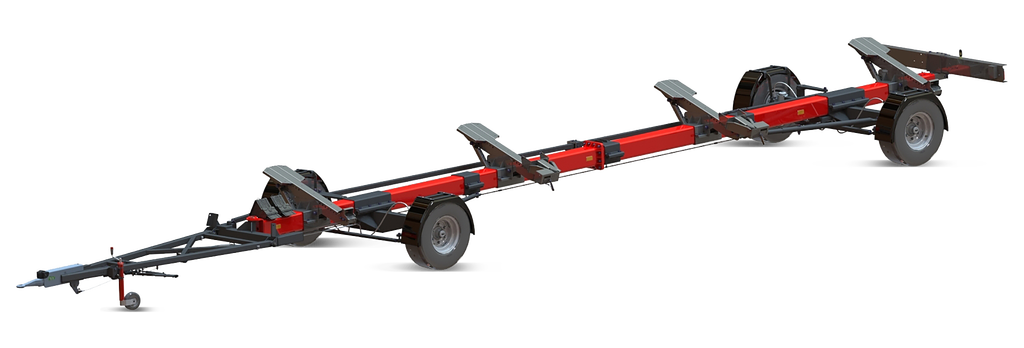

4-WHEEL TURN TRAILER (4WT)

The ZIEGLER 4WT’s steering knuckle solution guarantees a higher stability during corning and a perfect trailing. There is also no risk of collision between wheels and cutting system. The trailer characterizes itself with a high load capacity and enables the transport of large and heavy harvesting attachments with working widths of up to a max of 12.5 m and a permissible total weight of 6 or 7.2 tons. Due to the freely movable supports this model can be adjusted to fit every current cutting system and every current harvester.

FEATURES AND SPECIFICATIONS

FEATURES

  • Models for almost every header
  • V-interlocking for easy header drop-off
  • Painted to correspond to harvester (without additional charge)
  • Galvanised supports and interlockings
  • Flexible rear light carriers
  • Front axle load: 3,000 kg
  • Rear axle load: 3,000 kg

Options

  • Storage box
  • Reflector kit
  • Side lighting kit
  • Rotating beacon
  • Positioning aid for cutting system’s storage
  • 22 PR Tyres
  • Tool box
  • Spare wheel carrier
  • Complete wheel cover
  • 40 km/h arrangement

TECH SPEC

  1-axle 2-axle 4WT Tandem
Permitted front axle load 600 kg 3,000 kg 3,000 kg 600 kg
Permitted back axle load 3,000 kg 3,000 kg 3,000 kg 3,000 kg
Permitted total weight 3,600 kg 6,000 kg 6,000 kg 3,600 kg
Maximum width header 7.7 m 10.7 m 12.5 m 9.5 m
Brake Option: parking brake Overrun brake Overrun brake Option: hydraulic brake
Option 30km/h 40km/h 40km/h
