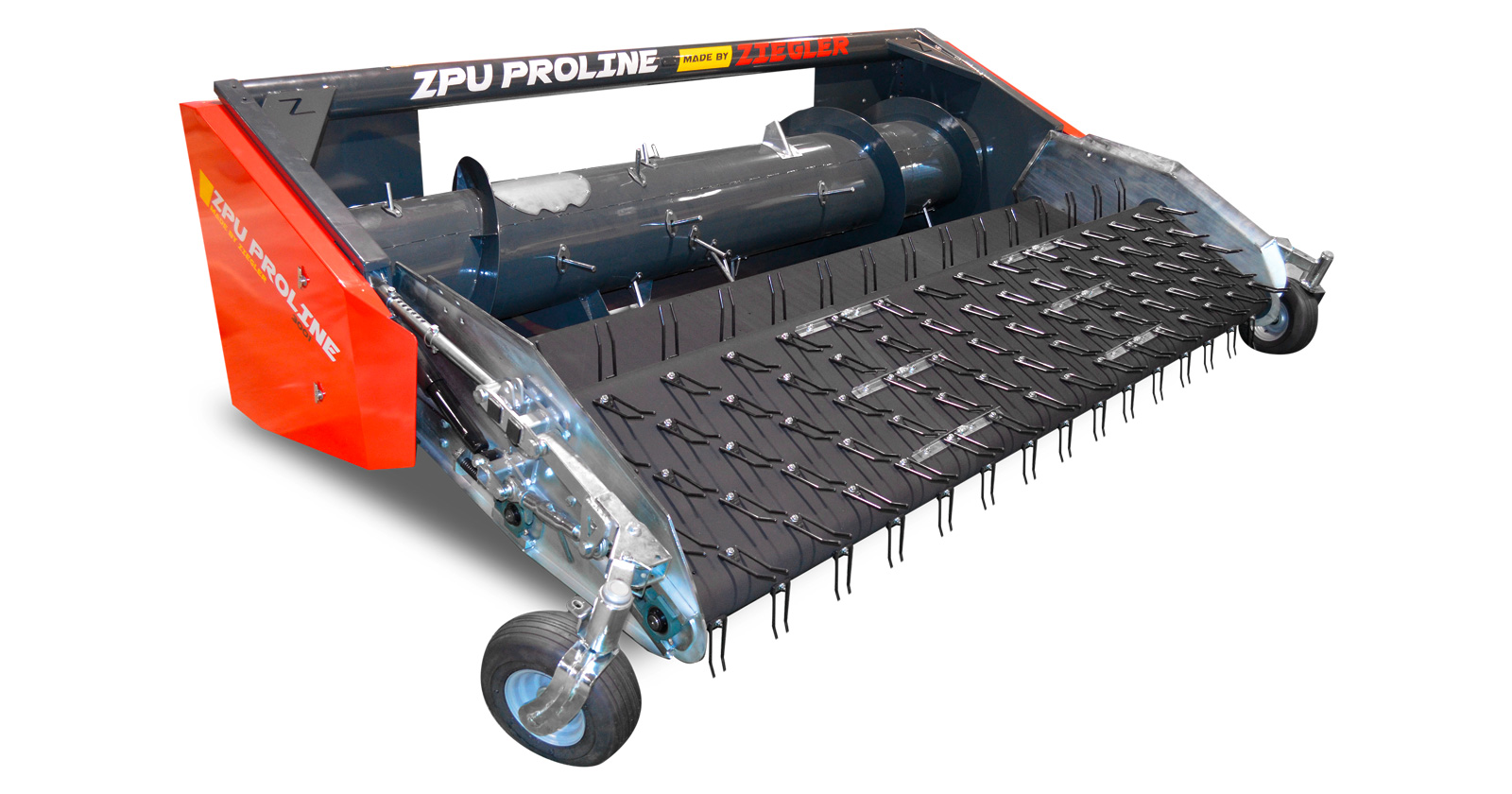

The ZPU-PROLINE series from ZIEGLER is available with working widths of 3 and 4 meters. These pickup models are an optimized further development of the basic model and an absolute professional device for maximum working speed with minimum losses. The highlight: two belts arranged one behind the other ensure perfect pickup and forwarding of the crop into the intake auger. The collection tapes are made of a new type of material and have a special structure. This prevents the crop from slipping off – especially with oily crops. The PROLINE series conveyor tines are made of high quality plastic and are even more powerful and flexible than the metal tines of the normal ZPU.

Extra narrow side walls prevent blockages in closely spaced swaths and round off the perfectly successful design of the ZPU PROLINE. All options of our basic model are of course also available for this series.



  • Professional variant for highest harvesting performance with minimum losses

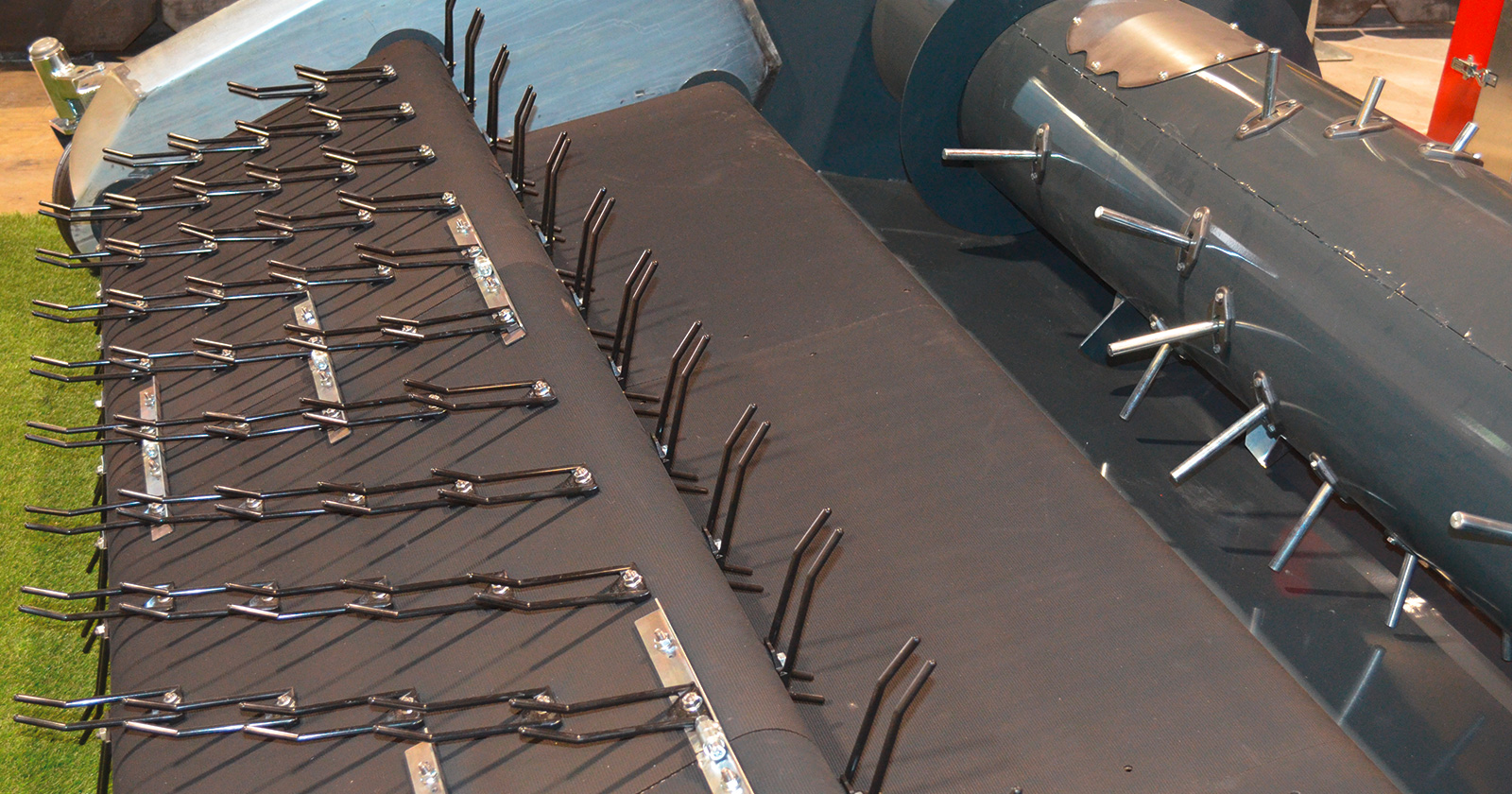

  • 2 collecting belts improve material flow and transfer to the infeed screw

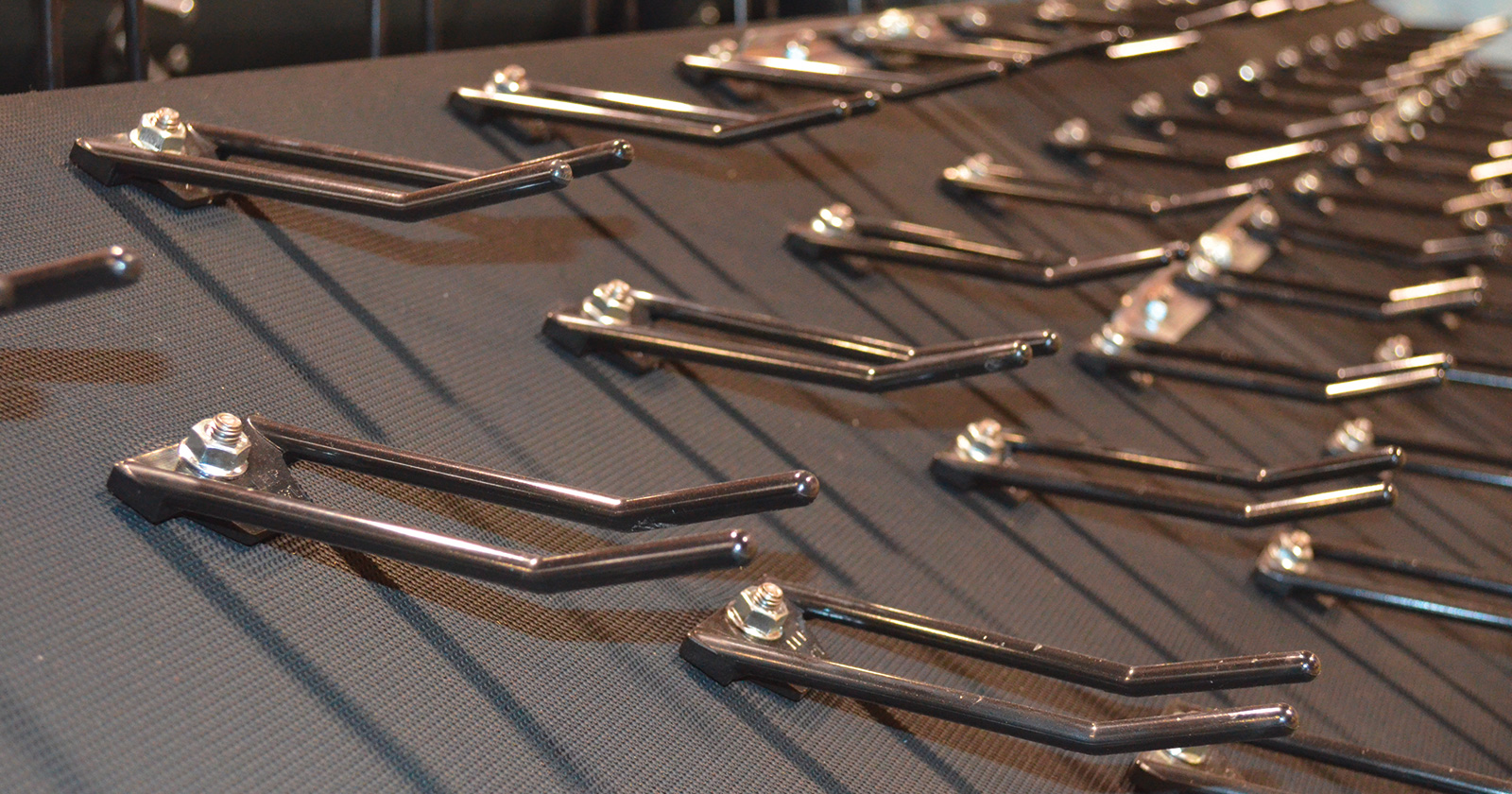

  • Plastic tines as standard for even more flexibility
  • Novel material of the anthologies
  • Narrow side walls
  • Performance damping as standard
  • Large dimensioned intake auger- perfect for voluminous crops
  • Swath downholder for very thick-stemmed crop (option)
  • Machine almost maintenance free
  • Available for all common combine models
  • Interchangeable frame system enables continued use of the pickup when replacing the combine harvester
  • ZIEGLER cutter carriage optionally available for all ZPU models



ZIEGLER ZPU PROLINE Working Width Belts Tines Dimensions
PROLINE 3001 3.0m 3 3 x 72 3495 x 2530 x 970 mm
PROLINE 4001 4.0m 4 4 x 72 4800 x 2530 x 970 mm
