RAPE SEPARATORS AND RAPE KITS

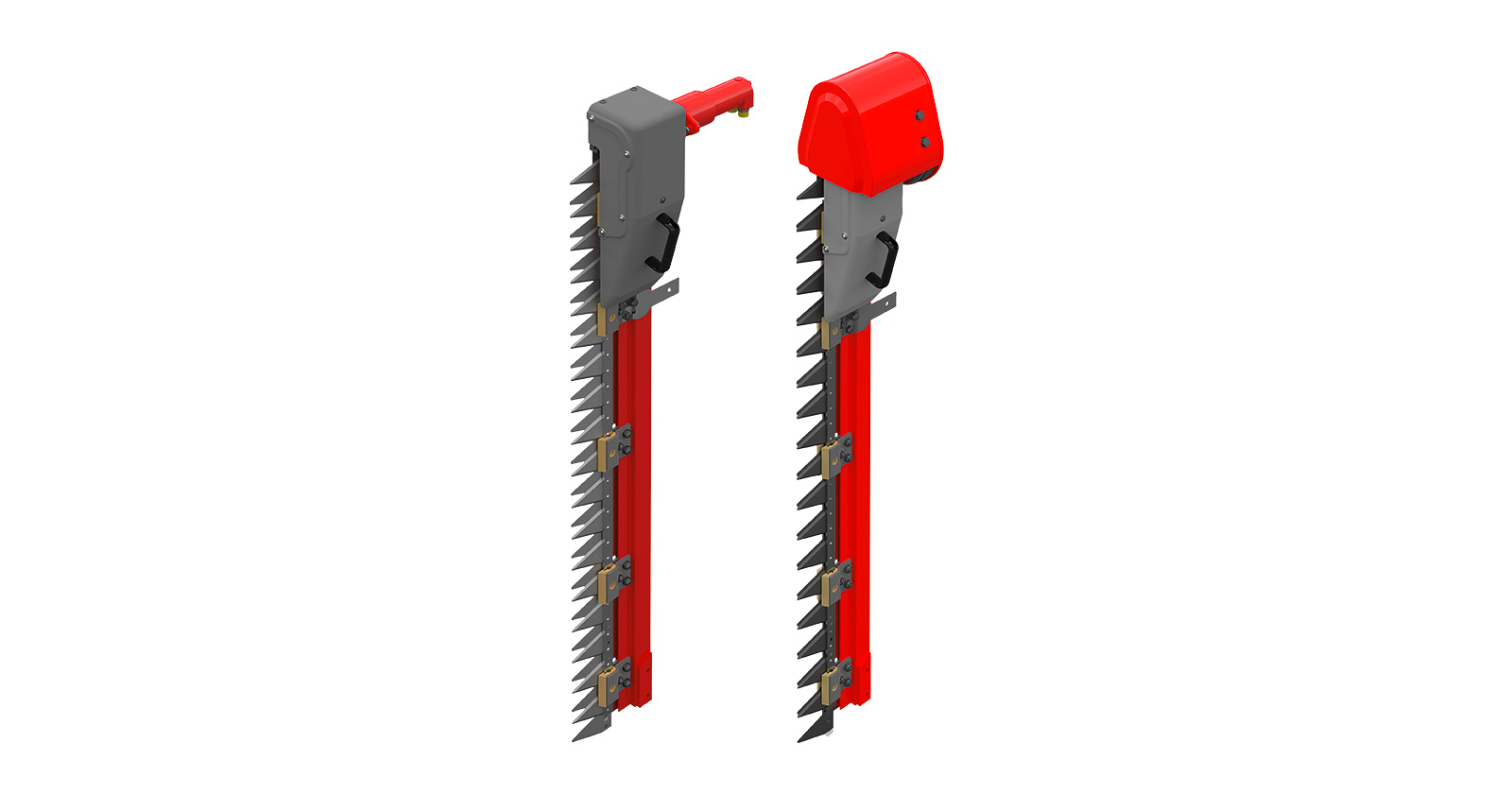

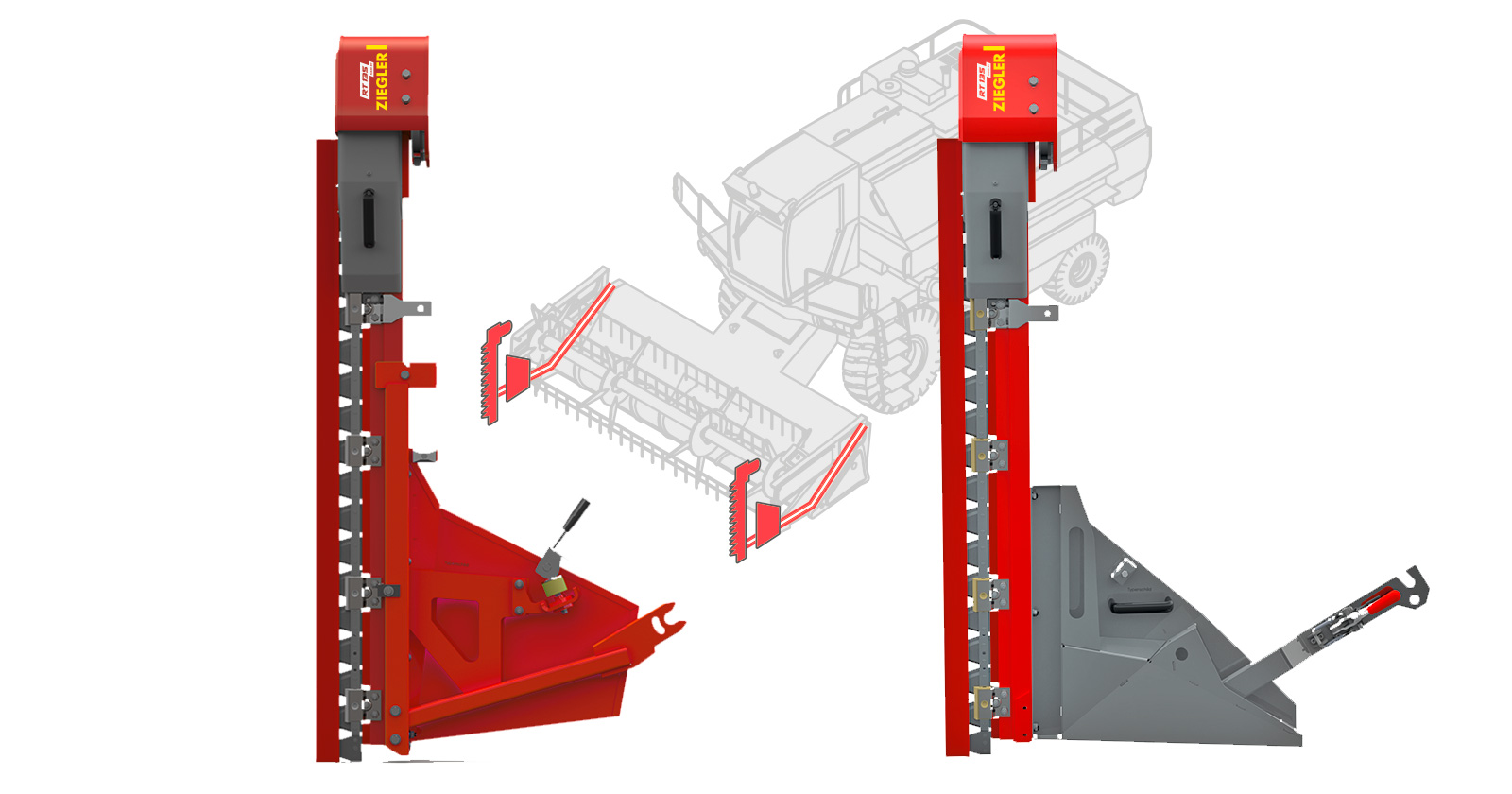

ZIEGLER has been the world market leader in the field of rapeseed harvesting technology for many years, especially in rapeseed separating knives. The ZIEGLER rapskit is the ideal complete solution for all common cutterbar models. It consists of the rapeseed cutter, a suitable mounting bracket for easy installation on the cutterbar and the matching cable or hydraulic line set.

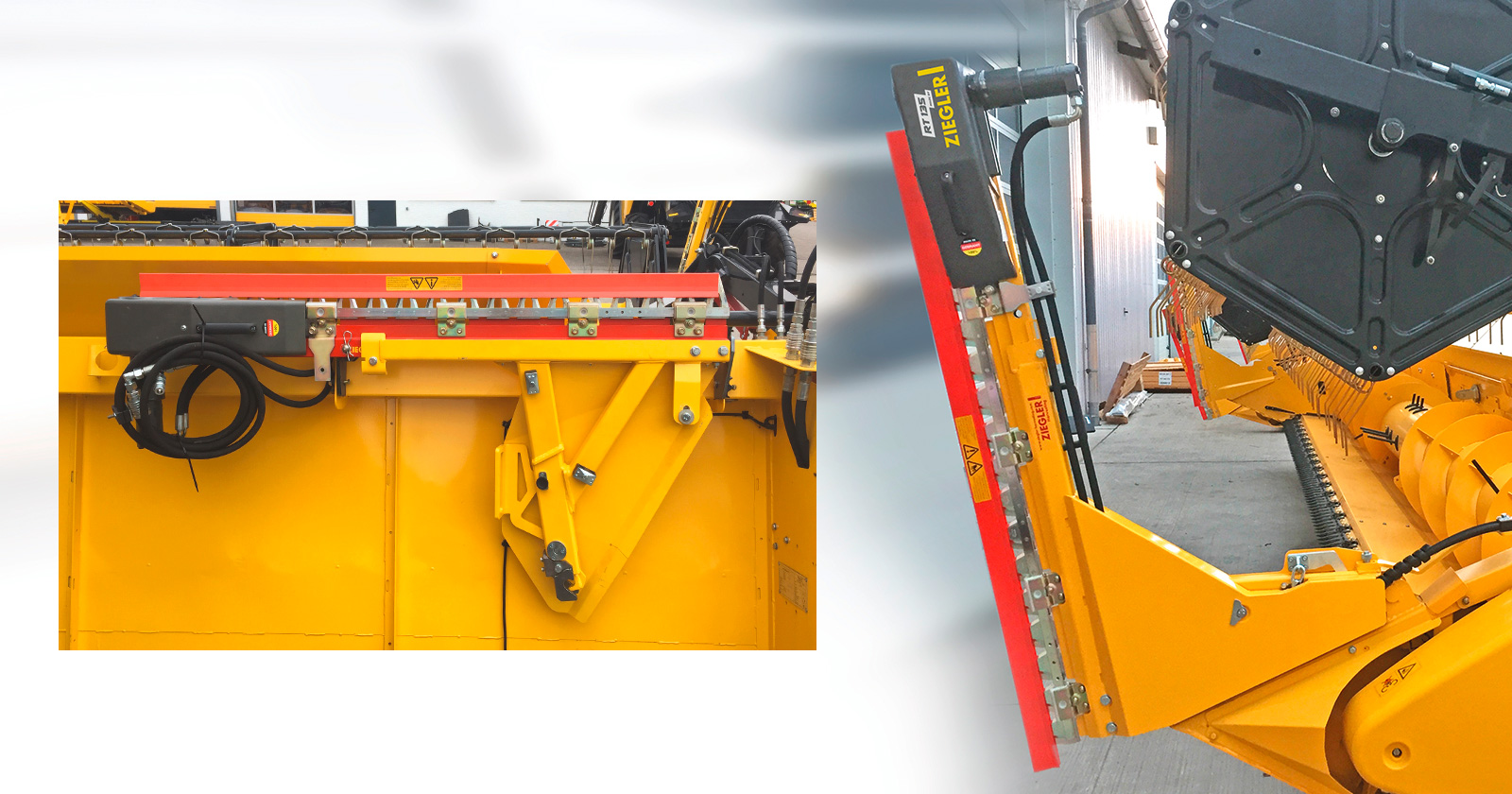

Ziegler's rapeseed equipment reduces harvest losses by up to 250 kg per hectare and thus pays for itself within a very short time. Each ZIEGLER rapskit can be easily assembled or disassembled by one person due to its low weight and special handles. In addition, quick-release fasteners make tool-free locking on the cutting unit possible. For some cutterbars, we also offer a folding mechanism with special holders – in this case, the rapeseed separators can remain mounted on the cutterbar.

For safe and easy transport, a dedicated ZIEGLER storage box is available, which is mounted on the cutterbar carriage. This not only facilitates transportation, but also protects against theft and moisture.

FEATURES AND SPECIFICATIONS

FEATURES

  • Most cost-effective complete solution for loss-free rapeseed harvesting
  • Simple assembly and disassembly on the cutterbar
  • Minimization of crop losses

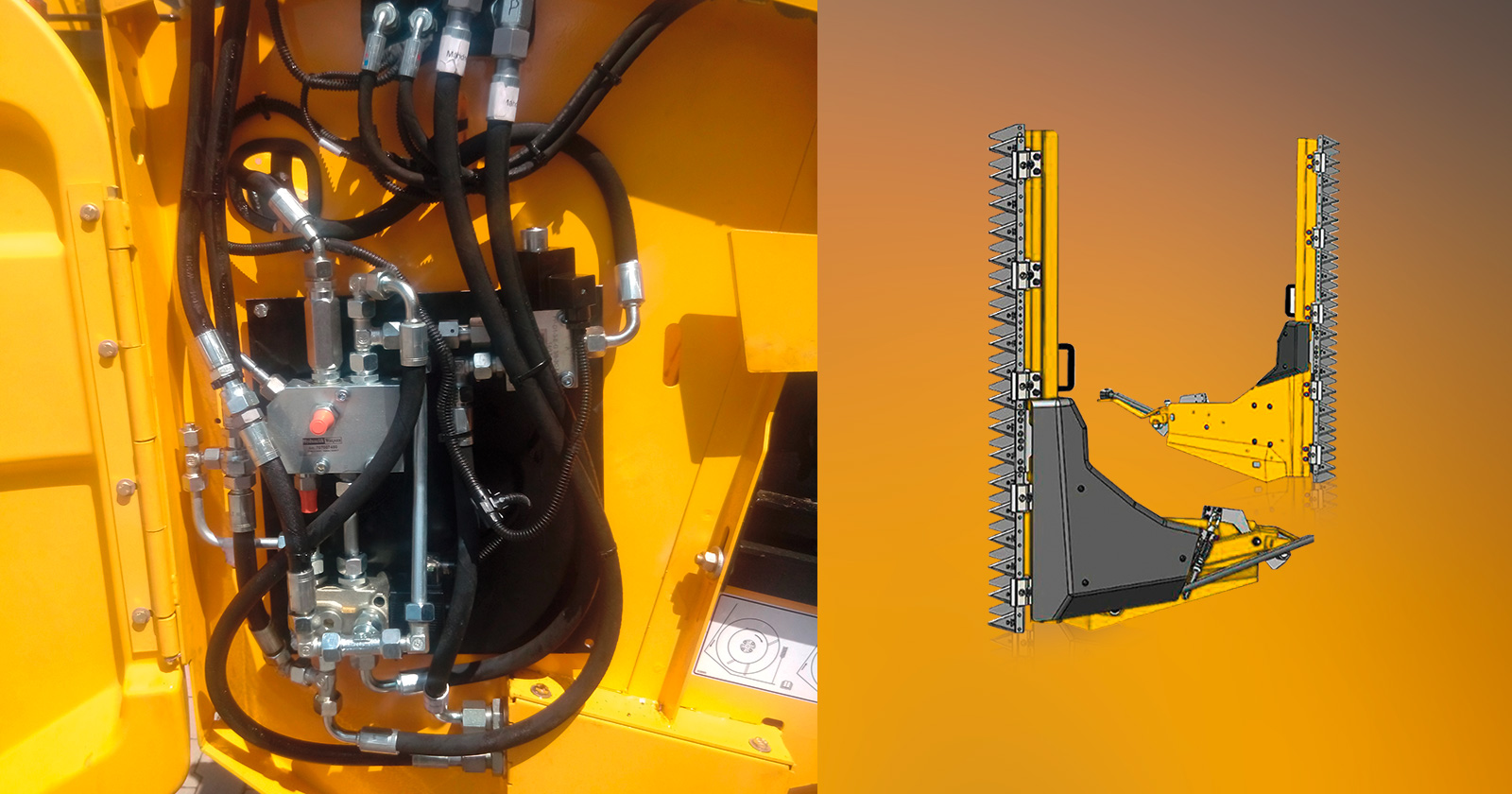

  • Electric or hydraulic drive of the rapeseed separator (optionally selectable)
  • Some models also with bottom knife drive
  • For almost all cutterbars and combine harvester types

TECH SPEC

Side knife type Side Power Watt/Ampere Blade length cm L*W*H cm
RT 135-E / 12 (electric) right, left 12V 400/25 10.5 165*21*27
RT 135-E / 24 (electric) right, left 24V 750/40 10.5 165*21*27
RT 135-HY (hydraulic) right, left - - 10.5 150*14*41
