SINGLE AXLE TRAILER

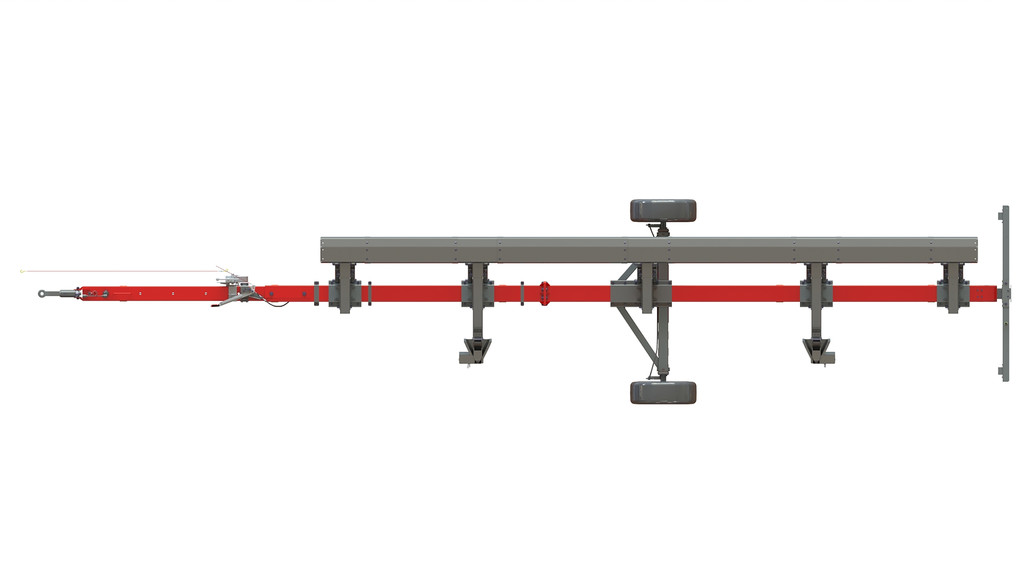

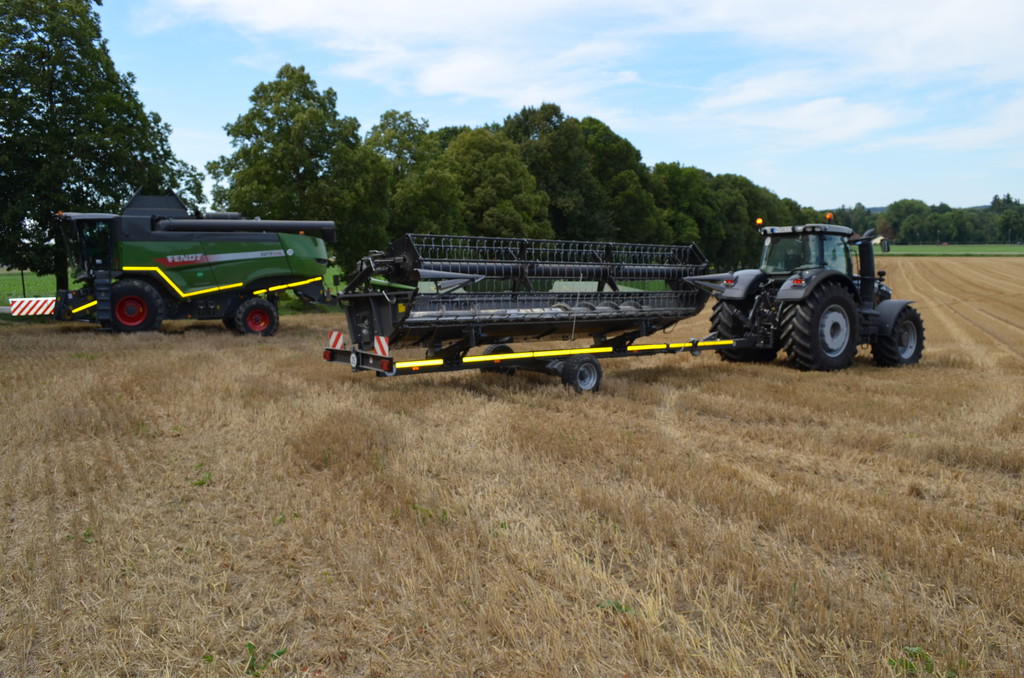

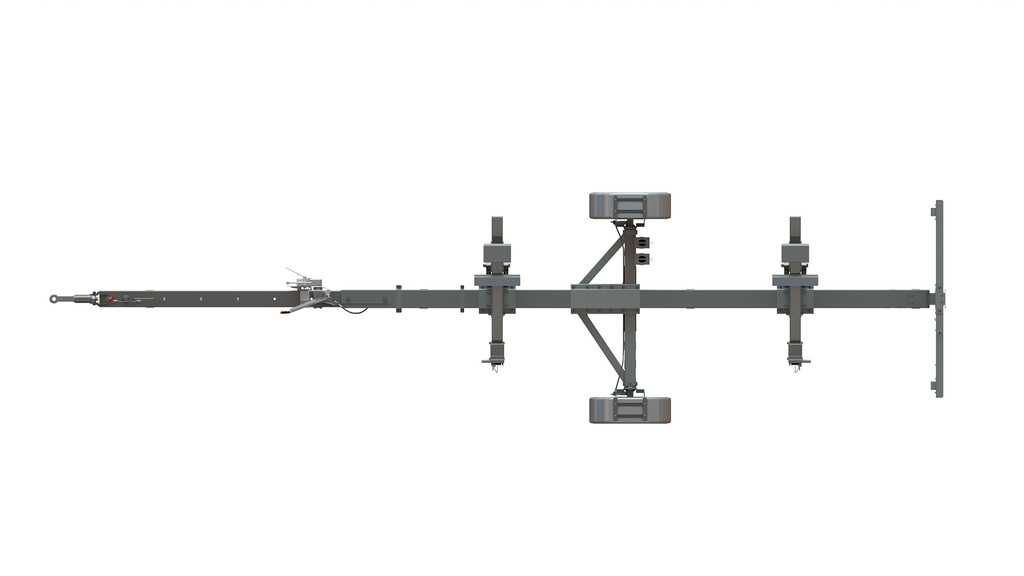

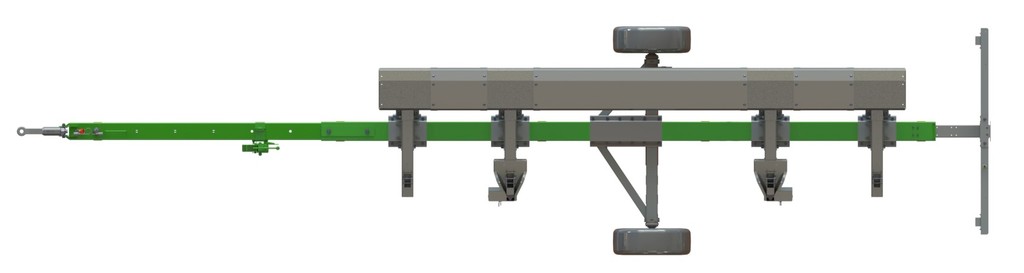

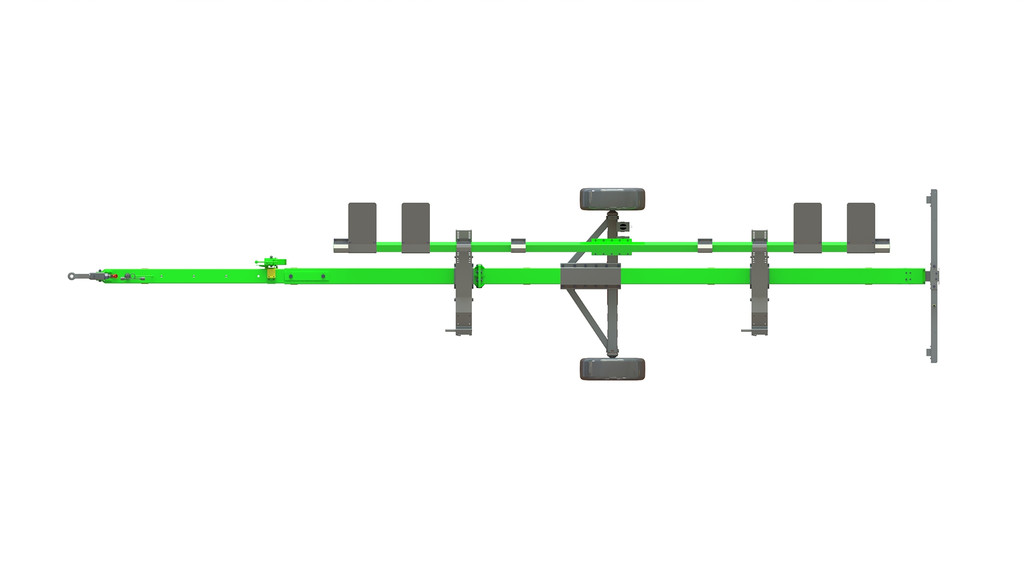

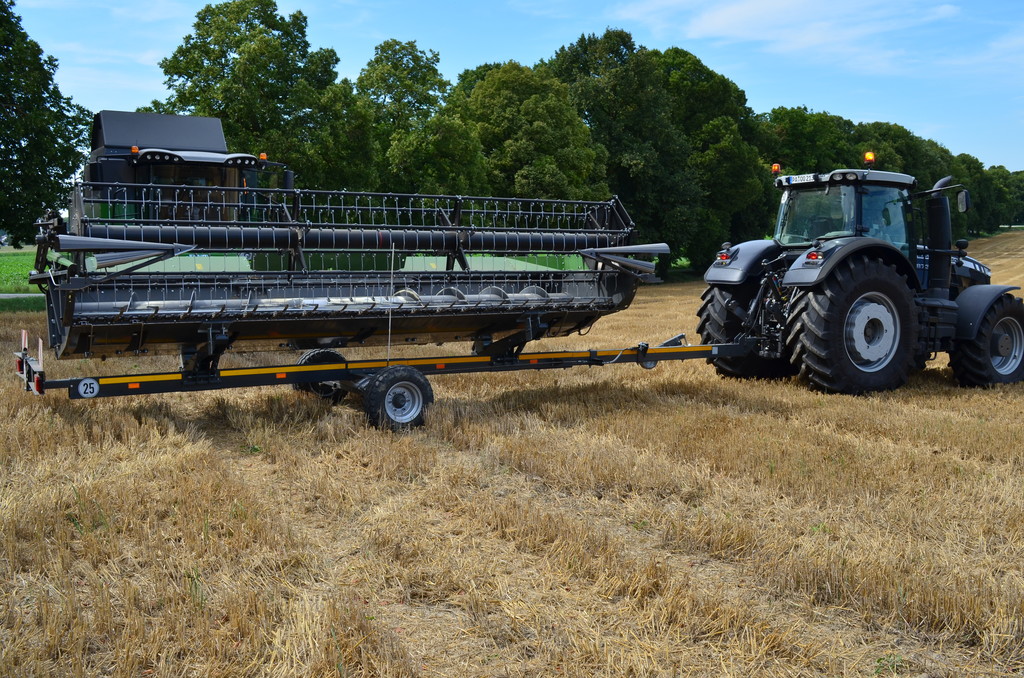

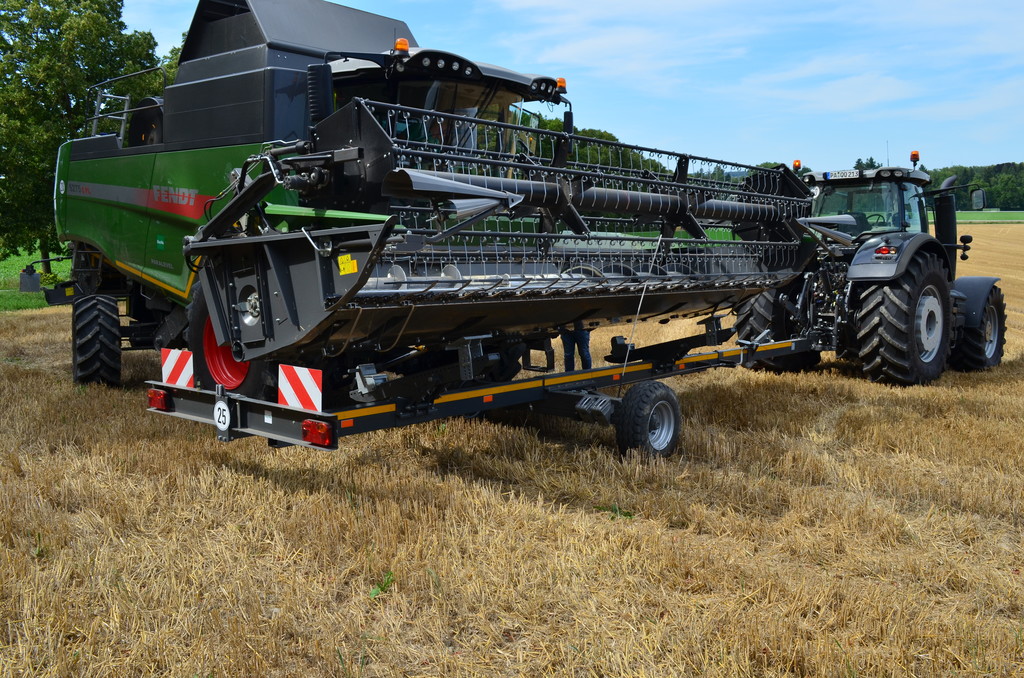

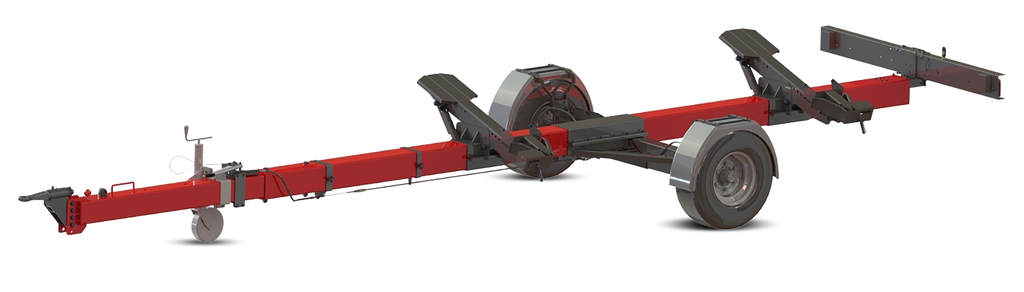

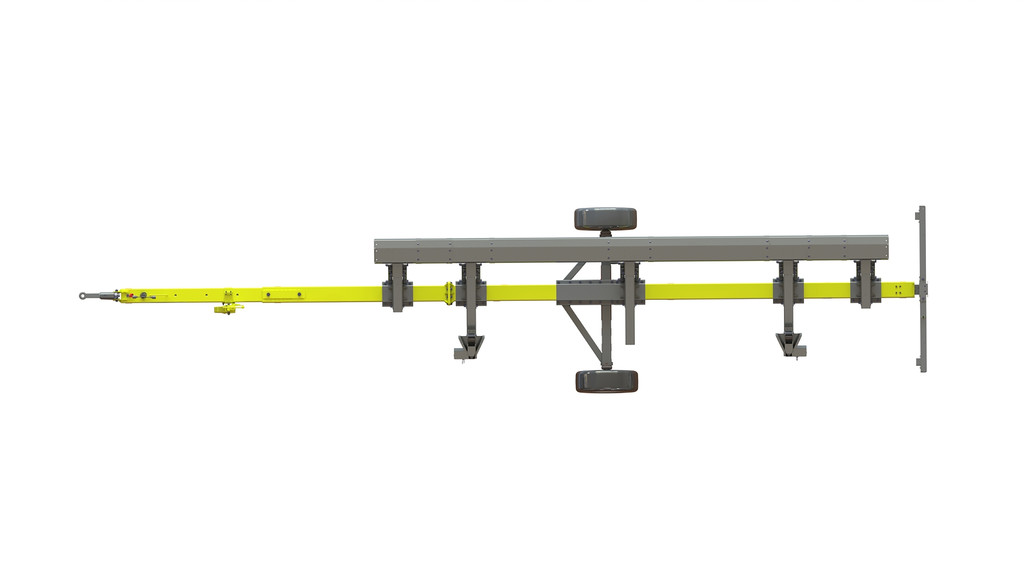

The ZIEGLER single axle trailer is suitable for transporting harvest attachments with working widths of up to a max of 7.7 m and grants a permissible total weight of 3.6 tons. Due to the movable axle, an adjustable draw-bar eye as well as extendable and freely movable supports, this model can be adjusted to every current cutting system and to every current harvester.

FEATURES AND SPECIFICATIONS

FEATURES

  • Models for almost every header
  • V-interlocking for easy header drop-off
  • Painted to correspond to harvester (without additional charge)
  • Galvanised supports and interlockings
  • Flexible rear light carriers
  • Bearing load: 600kg
  • Axle load: 3.000kg

Options

  • Storage box
  • Reflector kit
  • Side lighting kit
  • Rotating beacon
  • Positioning aid for cutting system’s storage
  • 22 PR Tyres
  • Tool box
  • Spare wheel carrier
  • Parking brake
  • 30 km/h arrangement with mudguards

TECH SPEC

  1-axle 2-axle 4WT Tandem
Permitted front axle load 600 kg 3,000 kg 3,000 kg 600 kg
Permitted back axle load 3,000 kg 3,000 kg 3,000 kg 3,000 kg
Permitted total weight 3,600 kg 6,000 kg 6,000 kg 3,600 kg
Maximum width header 7.7 m 10.7 m 12.5 m 9.5 m
Brake Option: parking brake Overrun brake Overrun brake Option: hydraulic brake
Option 30km/h 40km/h 40km/h
