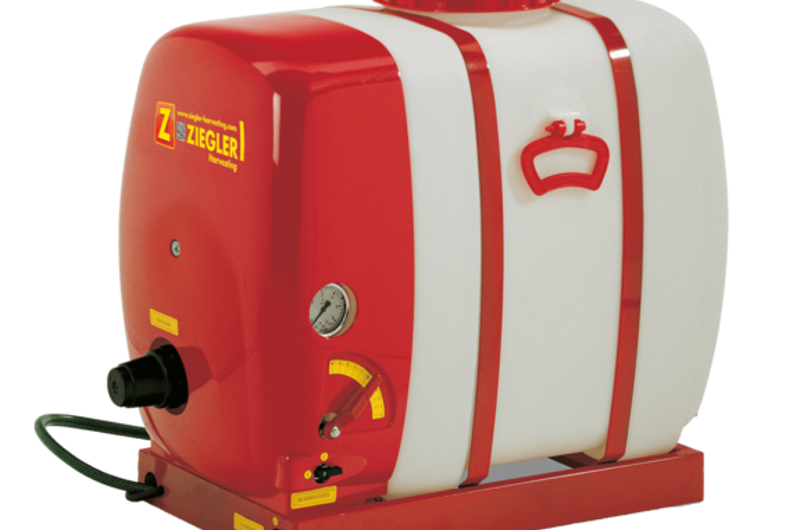

FDG 100

SILAGE PRESERVATION

The FDG series has been designed especially for the preservation of silage.  The device is driven by a robust high-pressure pump, which ensures a good dosing quality and serves the exact dosage of the silage agent into various types of silage (e.g. grass, corn, whole-plant silage, alfalfa) safeguarding against loss of nutrients, fungus, yeasts and bacteria. The pump builds up the required pressure and is fitted with an automatic protection system against overload.

Features and Specifications

  • A robust high-pressure pump with an automatic overload system
  • Stainless steel frame
  • PE container
  • Hose with application accessories (8m) and connection cable (10 m)
  • 12 volt electric motor (easy to connect the battery voltage of common harvesting machines)
  • Nozzle set
  • Two versions (100 or 200 L)
  • Can be connected to self-driven rotary stalk choppers
Technical information FDG 100 FDG 200
Container capacity, L 100 200
Voltage, V 12 12
Max. operating pressure, bar 4.1 4.1
Max.Flow rate, l/min 3.9 3.9
Length, mm 725 950
Width, mm 400 495
Hight, mm 650 810
Weight, kg 20 24
Nozzles 2 sets of 3 pieces 2 sets of 3 pieces
