SUIRE LOG SPLITTERS

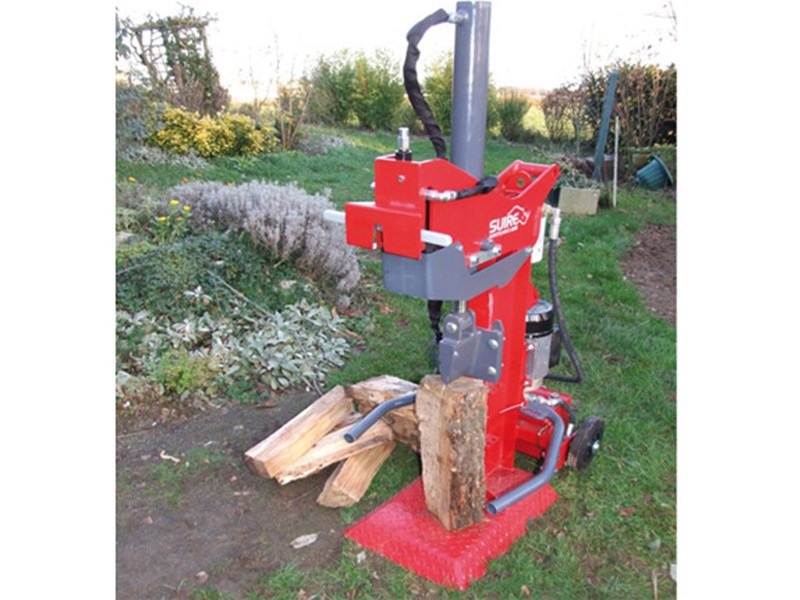

MICROFOREST 9 E
DESIGNED FOR LEISURE ACTIVITIES AND COMPACT TRACTORS - ELECTRIC
• Electric drive 220 V / 3.7 kW
• Front handles with 2-speed distributor for maximum performance
• Sharp wedge with automatic stop
• Reinforced non slipping table with 3 slopes to easily position the log
• 2 big 260 mm transport wheels to easily move the splitter

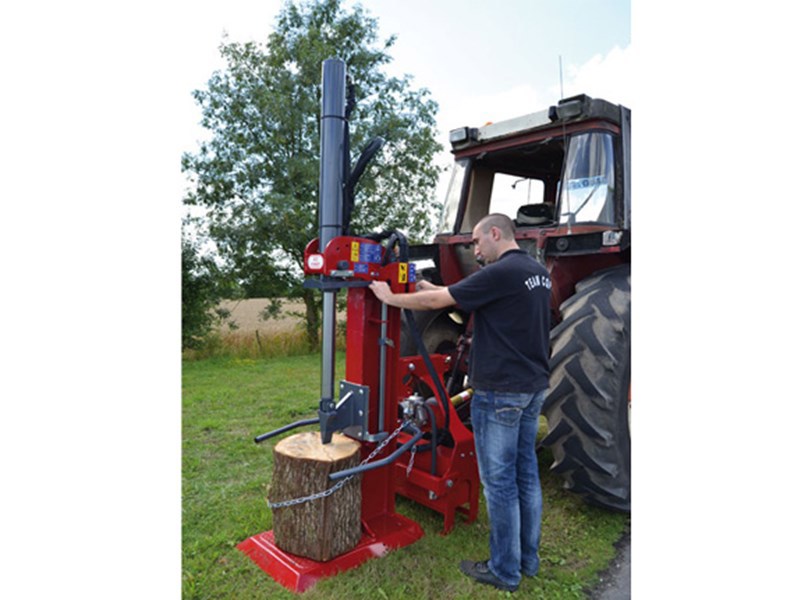

ECOFOREST 14 T - 18 T
FOR SMALL LOG SPLITTING WORKS / TRACTOR PUMP (HT) OR INDEPENDENT PUMP (PI)
• Reinforced nonslip table with 3 slopes to easily position the log
• 2 safety arms combined with a spring assisted chain hold the log in place
• The height adjustable wedge stop prevents the wedge from returning completely up, saving time and increasing working speed
• 2-speed distributor - high during lifting and lowering, slow during splitting
• Retractable hydraulic cylinder reduces storage height to 1.70 m
• The new bursting wedge profile reduces friction, first hitting the log with the tip the upper wider part then opens the log without the tip being in contact; giving the 2 part wedge a bigger splitting length (200 mm)

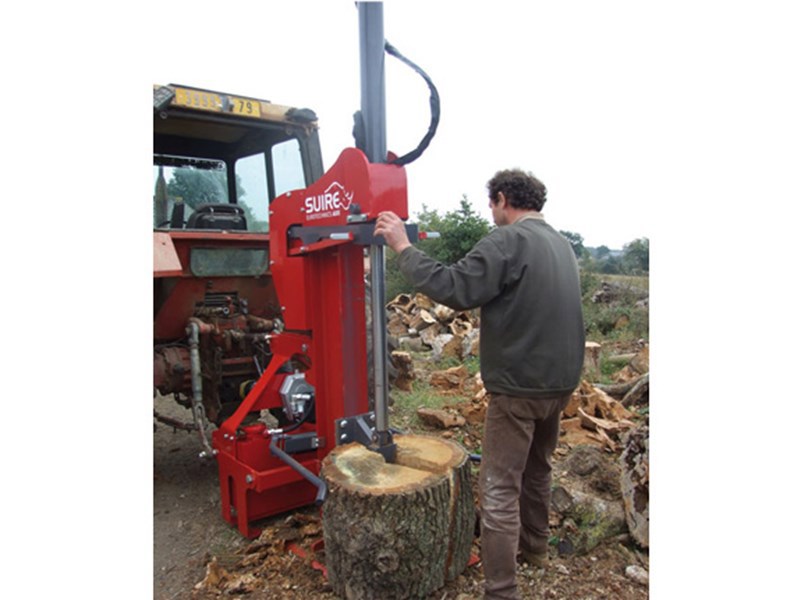

SEMIFOREST 16 T - 20 T
FOR INTENSIVE WORKS / TRACTOR PUMP (HT) OR INDEPENDENT PUMP (PI)
• Big 1.15 m clearance under wedge for high logs
• Retractable hydraulic cylinder reduces storage height to 1.90 m
• Hinged safety clamps, self-holding and height adjustment
• Hydraulic components are protected by covers (20 T)
• The new bursting wedge profile reduces friction, first hitting the log with the tip the upper wider part then opens the log without the tip being in contact; giving the 2 part wedge a bigger splitting length
• Front handles with automatic stop for SEMIFOREST 16 T
• Front handles for improved operation comfort on the SEMIFOREST 20 T

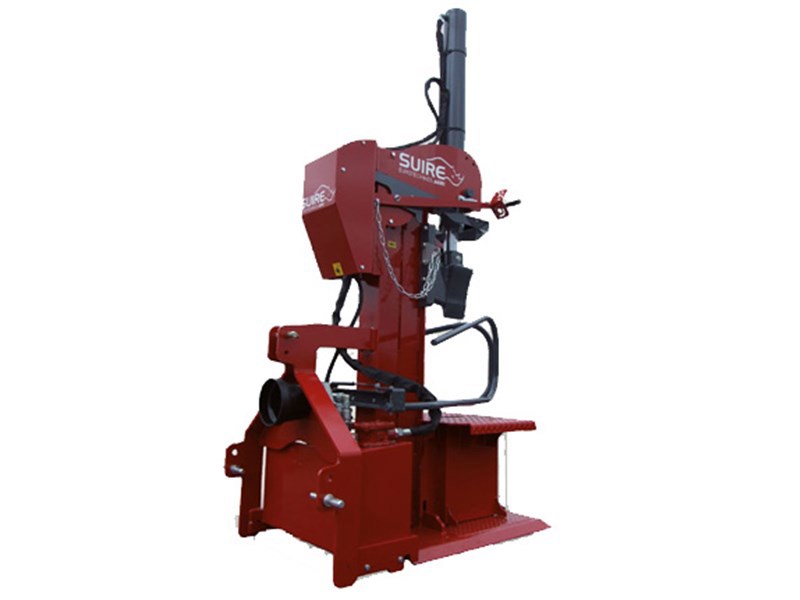

PROFOREST 22 T - 25 T
FOR PROFESSIONAL WORKS / INDEPENDENT PUMP (PI)
• The independent hydraulic power station with a tank of 80 litres feeds the cylinder of 120/80 mm for maximum power
• High hinged safety clamps, self-holding and with height adjustment
• Hydraulic components are protected by covers
• Retractable hydraulic cylinder reduces storage height to 1.99 m
• 2-speed distributor: high during lifting and lowering, slow during splitting
• Front handles for improved operation comfort for PROFOREST
• Bigger splitting length of 350 mm on PROFOREST 25 PI which enables splitting of large logs

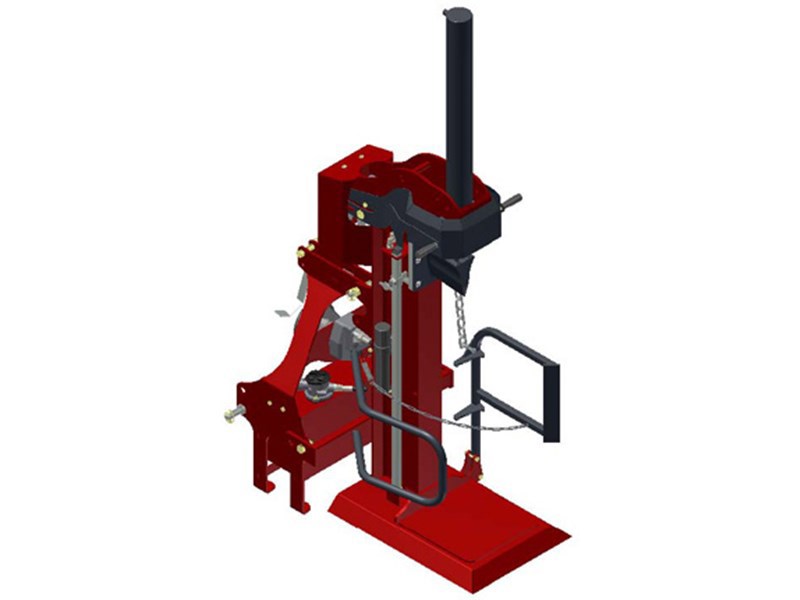

EUROFOREST 18 PI
INDEPENDENT PUMP (PI). COMPLIES WITH THE NEW CE EN609-1.2018 STANDARD
• User protection: mechanical wedge stop cover
• More capacity: maxi 1.11 m clearance under wedge
• Optimum splitting power: wedge with sharp cutting edge
• Ease of use:
- front handles
- rotating handle
- log lifter with log stopper
• Time saving: adjustable height wedge stop
• Optimal base: 850x580 large and nonslip table
• Controls protection: bearing cover
