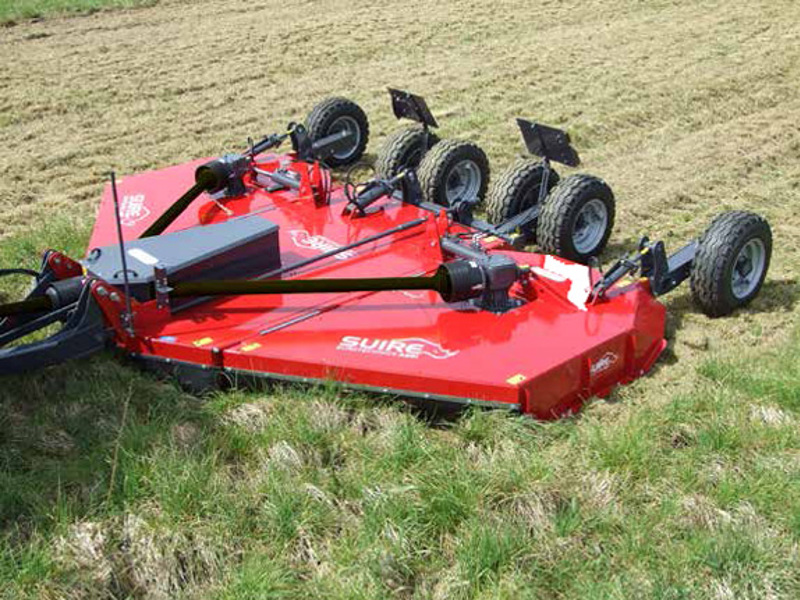

SUIRE MULTI-ROTOR ROTARY CUTTERS
TURBOGYR PRO 4800 - 5400 TR3
TRAILED FOLDABLE 4.8 & 5.4M. FULLY EQUIPPED FOR INTENSIVE USE AND/OR IN DIFFICULT CONDITIONS.
• 260 HP divider box and 1000 rpm gearboxes 120HP
• 6 wheels 10x75R15.3 with valve protection
• Rear wheel axle suspension
• PARALIFT

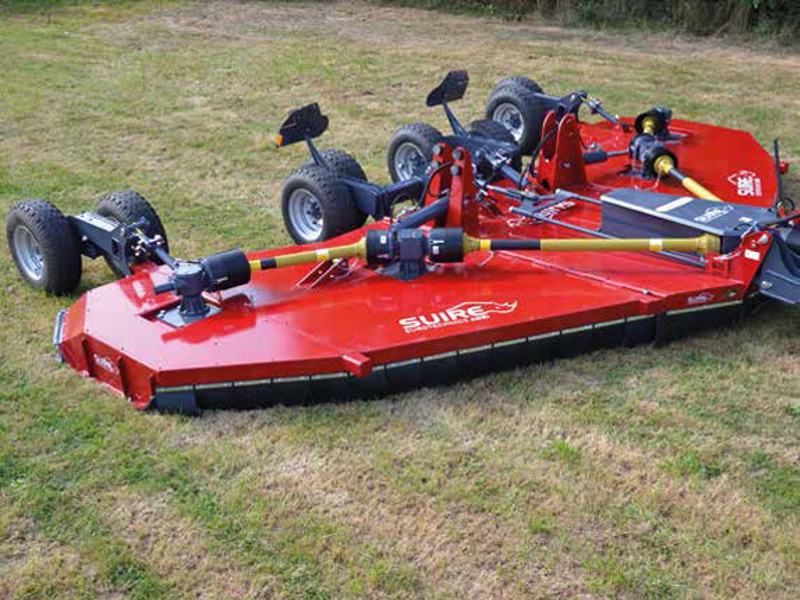

TURBOGYR PRO 4800 - 5400 TR3
TRAILED FOLDABLE 6.4M. FULLY EQUIPPED FOR INTENSIVE USE AND/OR IN DIFFICULT CONDITIONS.
• 260 HP divider box 1000 rpm, rotor gearboxes 120 HP
• 6 or 8 wheels 10x75R15.3 with valve protection
• PARALIFT
• Rear wheel axle suspension on 6 wheel models
• Central and lateral tandem axles for a perfect following of the ground in irregular land on 8 wheel models

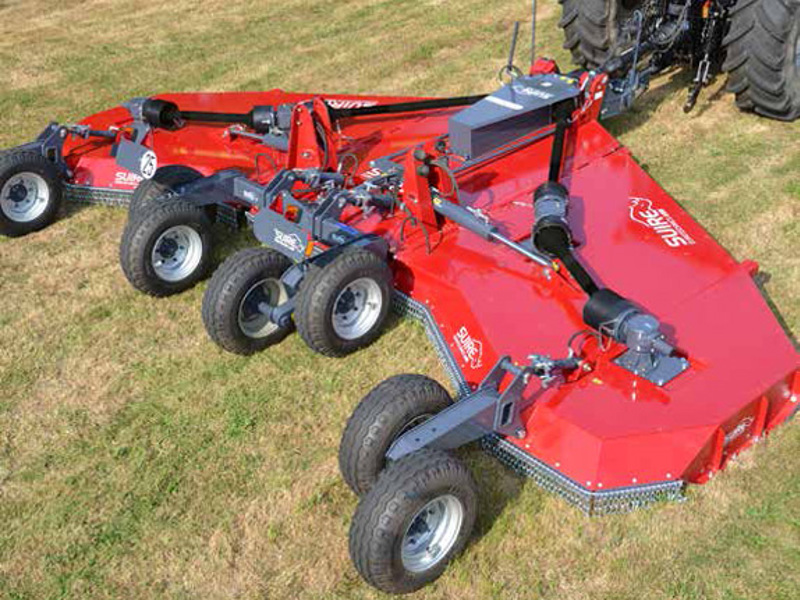

TURBOGYR PRO 7200 - 8000 TR5
TRAILED FOLDABLE 7.2 AND 8.0M
• 260 HP divider box 1000 rpm, rotor gearboxes 120 HP
• 8 wheels 10x75R15.3 with valve protection
• PARALIFT
• Central and lateral tandem axles
• Perfect following of the ground thanks to the floating position of the wings -15° to +15° at work
• Reinforced 150x100 mm central wheel axle and 2 nitrogen accumulators on hydraulic cylinders (road suspension)
• Wide angle PTO shaft, size 9, easy to grease
• Transport width below 2.55 m and more than 90° folding wings for more stability

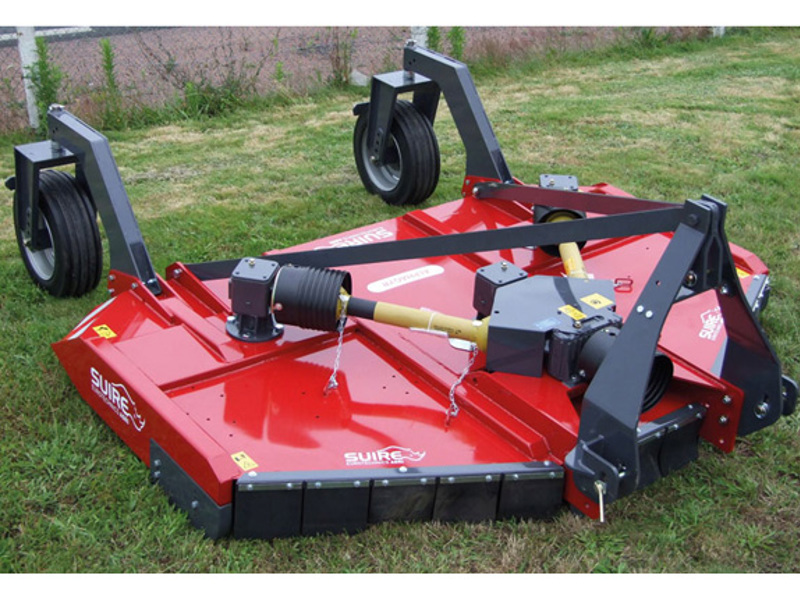

ALPHAGYR P
MOUNTED 2.8 AND 3.3M
• 180 HP divider box 1000 rpm and 3 rotor gearboxes 90 HP
• 3 point heavy duty linkage cat 2 link pins
• Front reinforced anti-projection flaps (optional chain curtain)
• Side PTO shafts with security by slip clutch
• Height adjustable rear roller
• Roller with removable ends including bearing protected by zig-zag baffle to avoid intrusion of grass or water
• 3 rotors with 4 blades and anti-wrap cutter each. Lower blades for suction and upper blades for cutting
• Height adjustable wheels
