SUIRE OFFSET VERGE MOWERS

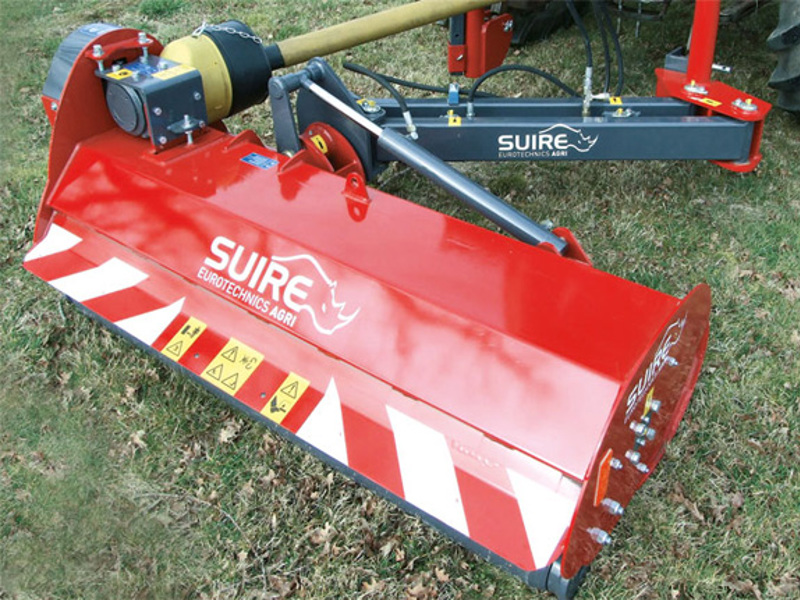

ROTOFLEX EV
THE EFFICIENT TOOL FOR GREEN AREAS MAINTENANCE
• 3-point-linkage, heavy duty cat. 2 link pins tube Ø 76 mm
• Floating 3rd point linkage good for following ground contours
• Parallelogram with 2 arms 120 x 60 mm
• 60 HP gearbox with incorporated overrun, PTO shaft 540 rpm
• Star tube PTO shaft 1’’3/8-6 splines
• Anti-projection galvanised flaps and rear hinged flap
• Roller Ø 140 mm
• Welded skids (optional skid shoes)

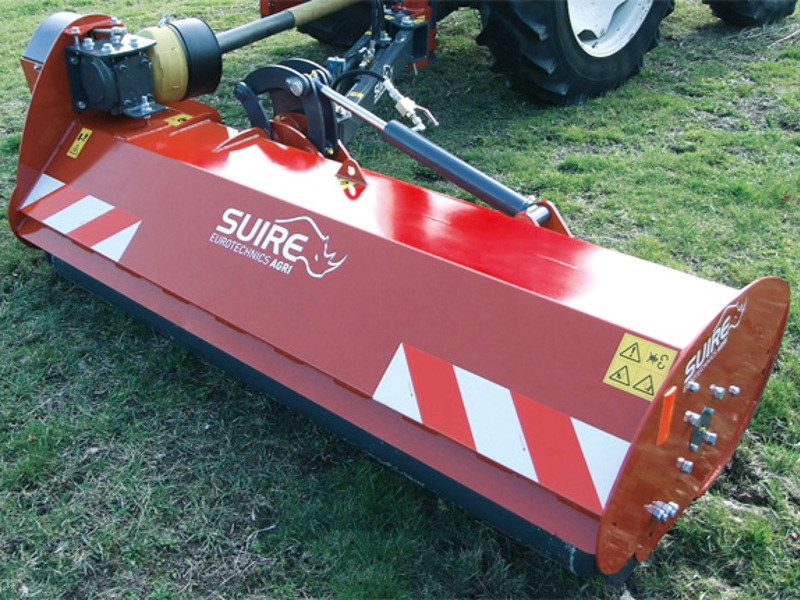

ROTOFLEX AG
THE FARMING SPECIALIST
• Linkage, heavy duty cat.2 link pins Ø 114 mm
• Mechanical break back device: wiping in case of obstacle
• Parallelogram with 2 arms 120 x 60 mm
• 100 HP gearbox with incorporated overrun, PTO shaft 540 rpm
• Star tube PTO shaft 1’’3/8-6 splines
• Anti-projection galvanised flaps and rear hinged flap
• Welded extra steel deck
• Roller Ø160 mm
• Hydraulic slope adjustment down to -65°
• Skids with bolted skid shoes

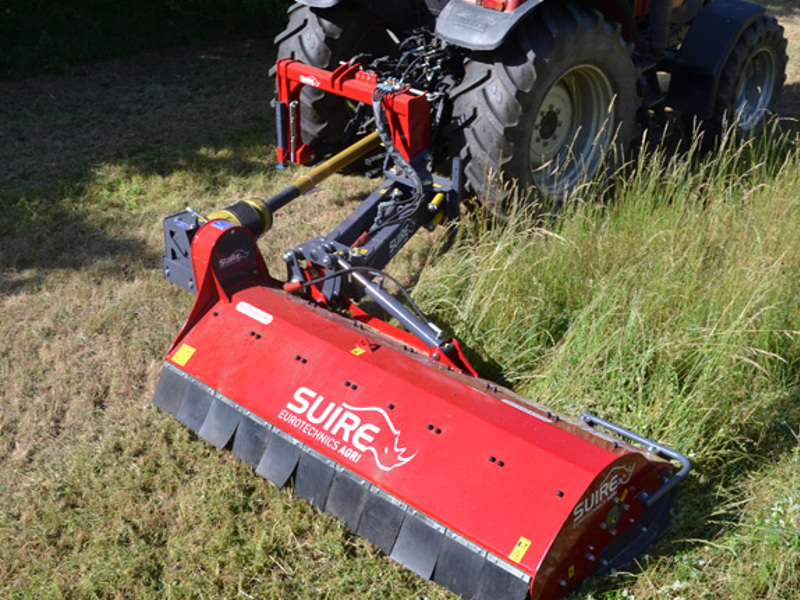

ROTOFLEX AG
THE PROFESSIONAL TOOL FOR INTENSIVE USE
• 3-point-linkage, heavy duty cat. 2 and 3 link pins tube 120x120x12.5 mm
• 180 HP gearbox with incorporated overrun, PTO shaft 540 rpm
- Exterior (E) for a lateral working besides tractor wheels.
- Interior (I) for a working at the back of the tractor.
• Parallelogram with 2 arms 180 x 80 mm
• Wide angle double cardan (star tube)
• Anti-projection galvanised flaps and rear hinged flap
• Bolted extra steel deck
• Bolted skids DILLIDUR th. 10 mm
• Sides th. 8 mm
• NSDR security (Non-Stop Double Spring), rear wiping in case of obstacle, and automatic return
