SUIRE SINGLE ROTOR ROTARY CUTTERS & MOWERS

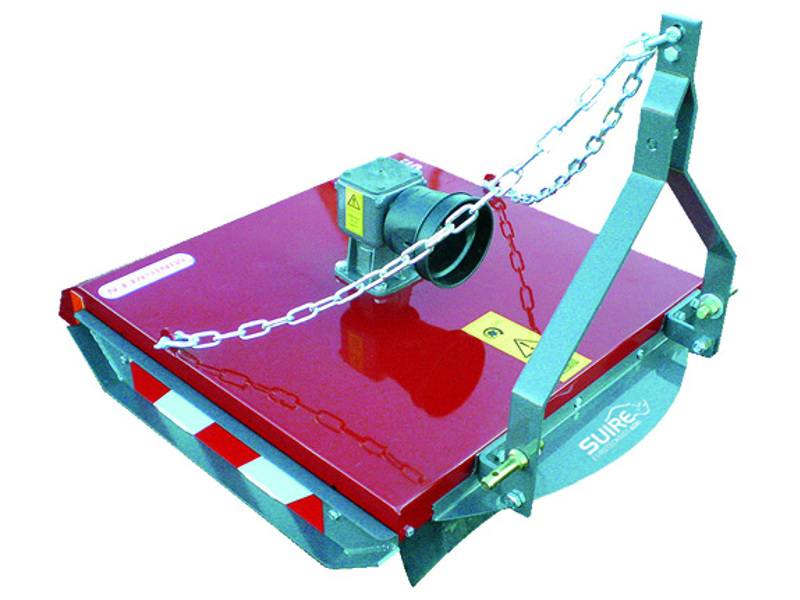

• 45 HP gearbox, 540 rpm
• Compact model ideal for small tractors
• 2 blade-Rotor
• Deck design: internal ribs and smoother-easy to clean external surface
• Front flap and rear deflector preventing throwing
• Adjustable cutting height by skids
• Counter bent updraft blades lift lying grass up
• Creeper cutter welded on the rotor prevent objects entering the nose of the gearbox

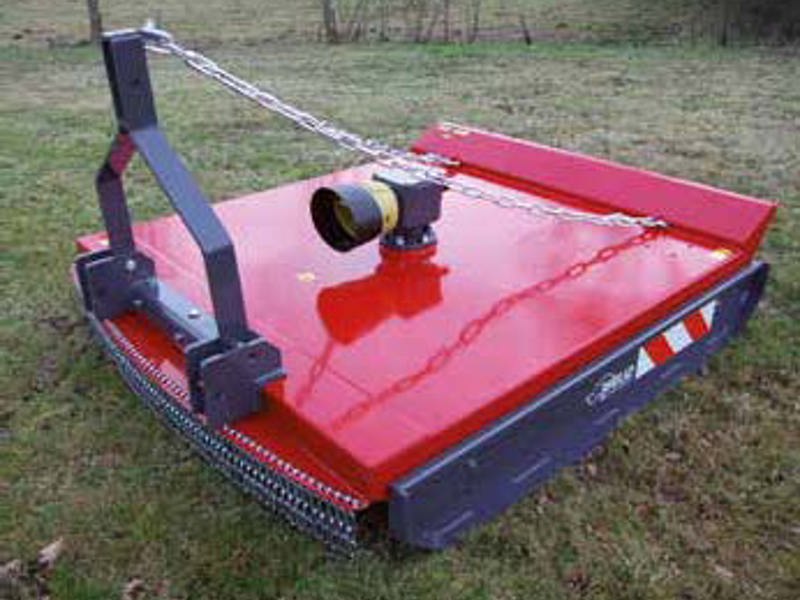

• Gearbox, 540 rpm
   - 45 HP, 2 blade-rotor
   - 75 HP, 3 blade-rotor
• Rotor with 3 dual hinged blades: fine crushing and excellent protection against shocks
• Deck design: internal ribs and smoother, easy to clean external surface
• Front flap and rear deflector prevent throwing
• Adjustable cutting height by skids
• Counter bent updraft blades lift lying grass up
• Creeper cutter welded on the rotor prevent objects entering the nose of the gearbox

• 120 HP gearbox, 540 rpm
• Front anti-projection galvanised flaps
• 5 mm steel frame
• Hinged rear protection flap with 350 mm spoiler
• Rotor with 3 dual hinged blades: fine crushing and excellent protection against shocks
• Blades set on hardened bushings
• 3 blade-rotor: 500 x 100 x 12 mm (2.00 m : 600 x 100 x 12 mm)
• 6 blade-rotor: kit with 3 upper blades for finer crushing

• 120 HP gearbox, 540 rpm
• Front anti-projection chains
• Reinforced steel frame 5 + 5 mm = 10 mm
• PTO shaft with security by slip clutch (included overrun)
• Steel deck with easy smooth surface
• Optional rear wheel(s)
• Rotor with 3 dual hinged blades: fine crushing and excellent protection against shocks
• Blades set on hardened bushings
• 3 blade-Rotor: 500 x 100 x 12 mm (2.00 m : 600 x 100 x 12 mm)
• 6 blade-rotor: kit with 3 upper blades for finer crushing
• Kit of 3 dual hinge chains Ø 16 mm, for tough and stony conditions with excellent protection against shocks

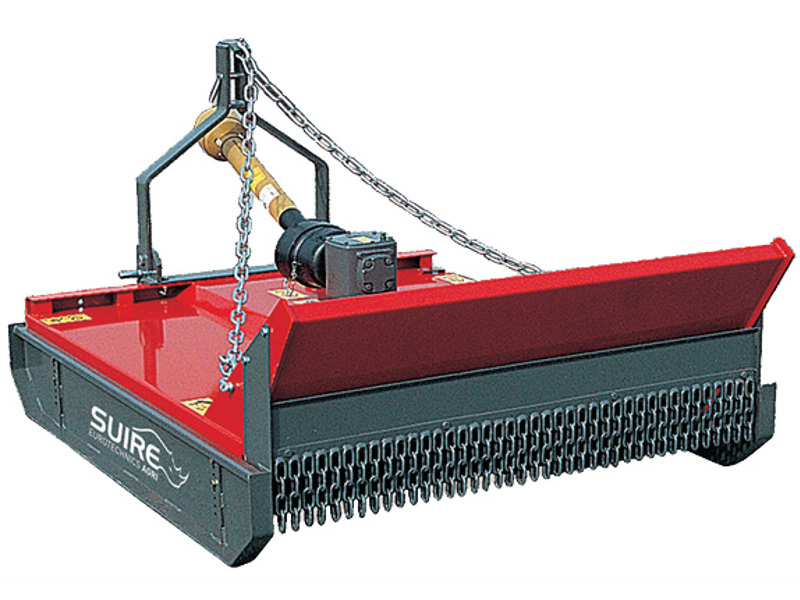

• 150 HP gearbox, 1000 rpm
• Semi-automatic linkage cat. 2
• Front anti-projection chains
• Reinforced steel frame 5 + 6 mm = 11 mm
• PTO shaft with security by slip clutch including overrun
• 700 mm high spoiler with rear hinged flap with chains
• Double hinge blades for excellent protection against shocks
• Blades fixed with hardened bushings

• GF Plus 15060 - 6 blade rotor on 2 levels for fine crushing

• GF Plus 15090 - 3 chains Ø 19 mm double disc rotor, for tough conditions (stones, trunks)

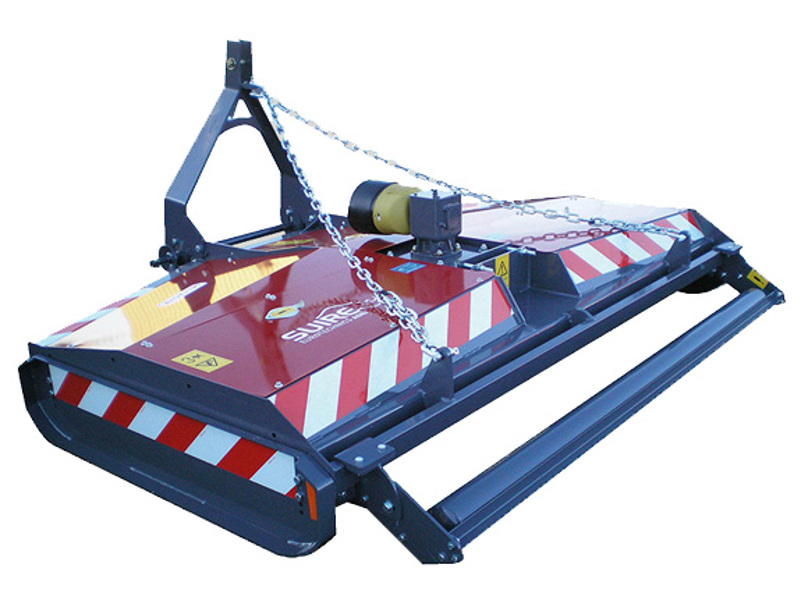

• 80 HP gearbox, 540 rpm
• PTO shaft with security by slip clutch
• Drive line with belts
• 3 rotors with 2 blades, 70 mm overlap
• Height adjustment through non aggressive bolted skids - optional rear roller
• Low frame design

• 80 HP divider gearbox, 540 rpm, two 45 HP rotor gearboxes
• PTO shaft with security by slip clutch
• 2 rotors with 2 blades, 50 mm overlap
• Reduced depth (1.52 m) for easy operation
• Drive line with rubber coupling
• Height adjustment through non-aggressive bolted skids
