SUIRE TRANSPORT BOXES, BUCKETS & YARD SCRAPERS

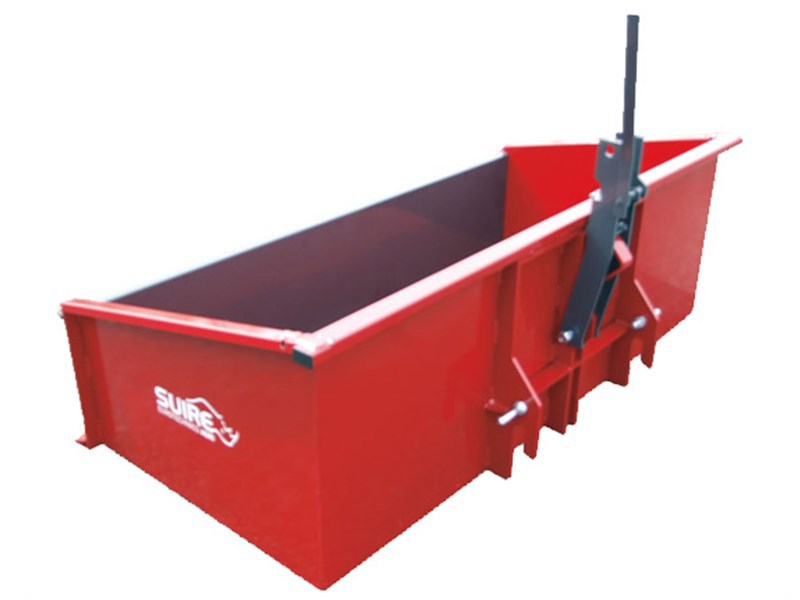

TRANSPORT BOXES
• 3-point-linkage, cat.1/2 link pins (BR 160), cat. 2 (BR 180) and hooks for lower linkage draw bar
• Tipping mechanism on link pins
• Welded scraper blade
• Double hinged rear door
• Reinforced bottom

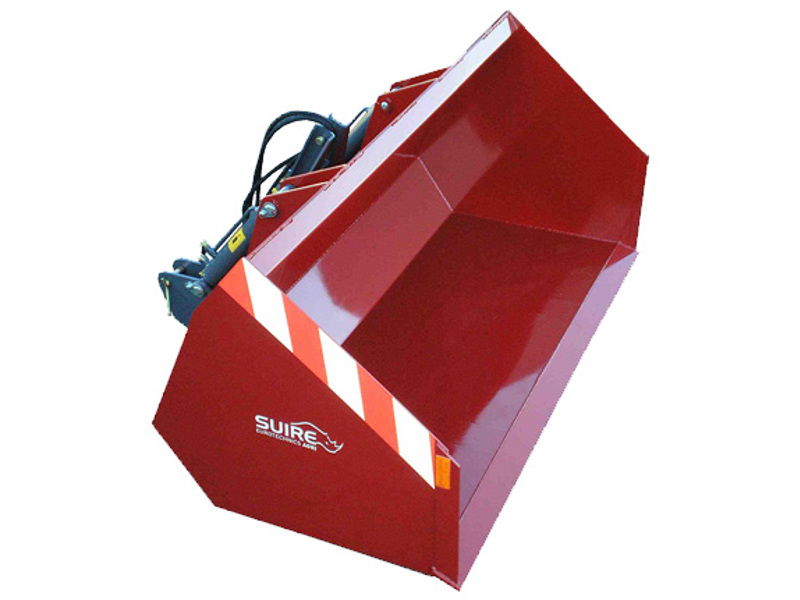

HYDRAULIC BUCKETS
• 3-point-linkage, heavy duty cat. 2 link pins
• 2 D.A. cylinders tipping 70 x 40 (1 D.A. tractor requirement)
• Delivered with flexible and 2 push-pull
• Bevelled steel scraper blade
• Bushed and greased articulated axles
• Reinforced bottom
• Optimised form for powerful lifting

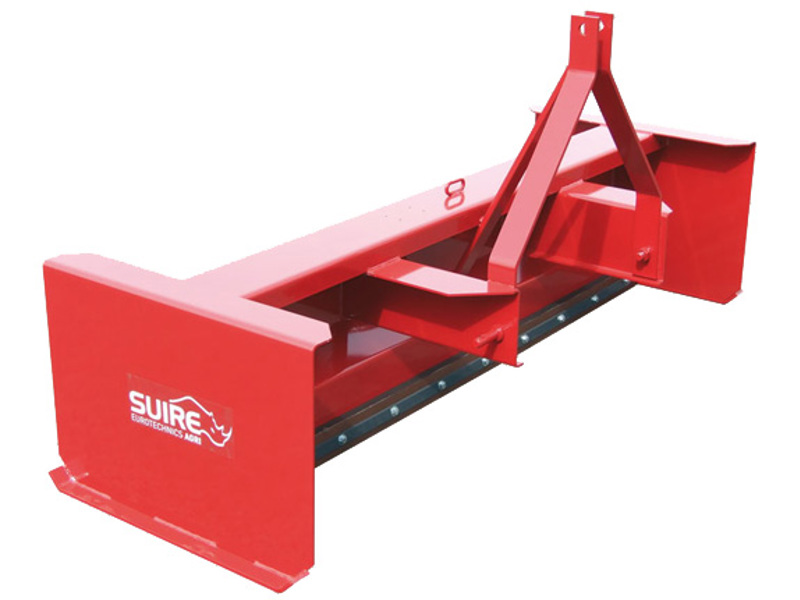

STANDARD RL YARD SCRAPER
• 3-point-linkage, cat. 2 link pins for RL 2000, on hooks for lower linkage (coupling bar not supplied) for RL 2300 and RL 2500.
• Armoured composite scraper, reversible, 80 x 25 mm
• Welded skids on RL 2000 bolted skids on RL 2300 and RL 2500

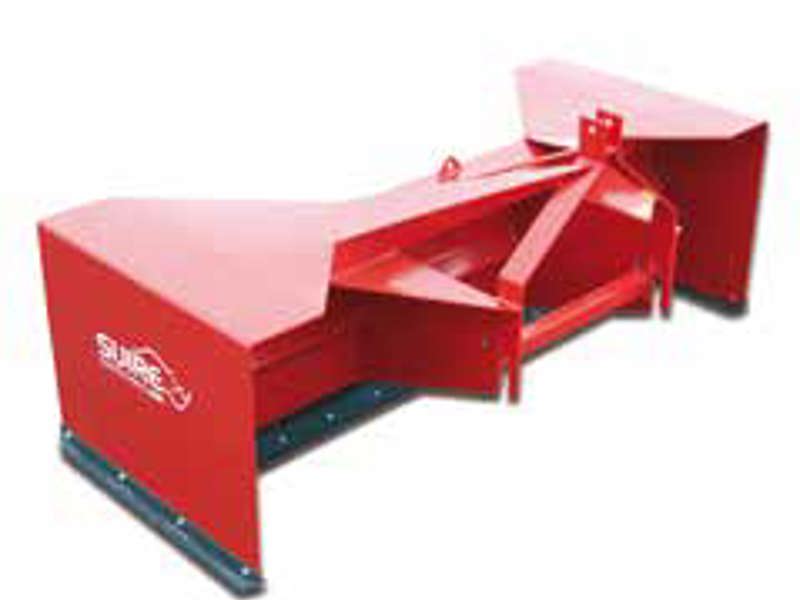

HEAVY RLL YARD SCRAPER
• 3-point-linkage, cat. 2 pins and on hooks for lower linkage (coupling bar not supplied)
• Double armoured composite scraper, 125 x 25 mm
• Armoured composite bolted skids

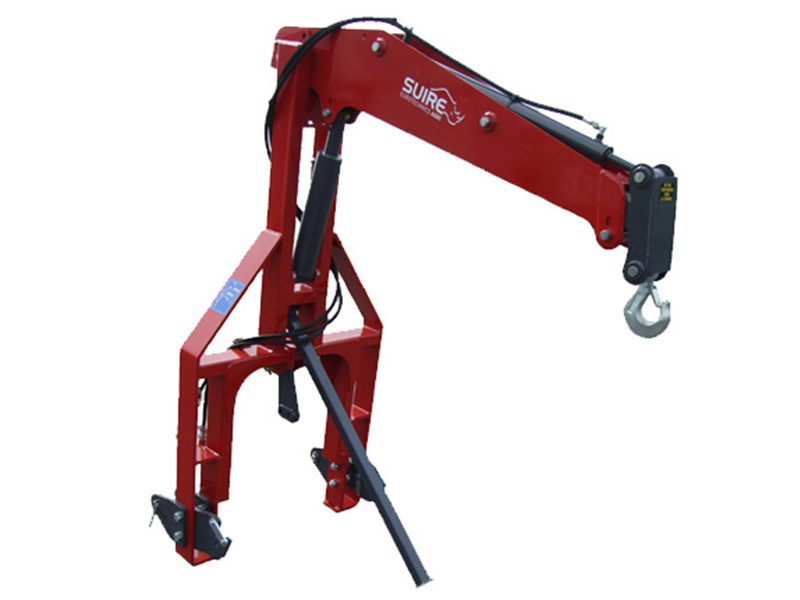

HANDLING ARM
• 3-point-linkage, heavy duty cat. 2 link pins (2 height adjustments)
• Semi-automatic 3-point-linkage for fertiliser spreaders, cat. 2 link pins
• 4 linkage width adjustments (from 660 to 830 cm)
• Third linkage point adjustable by telescopic rod
• Hook with great opening (49 mm), and security pawl, authorised charge 2.5 tons
• Telescopic arm with sliding extension fixed on bushed and greased rolls
• DA extension cylinder with security valve
• SA lifting cylinder with security valve
• Tractor’s supply: 1 SA + 1 DA
• Adjustable parking stand
