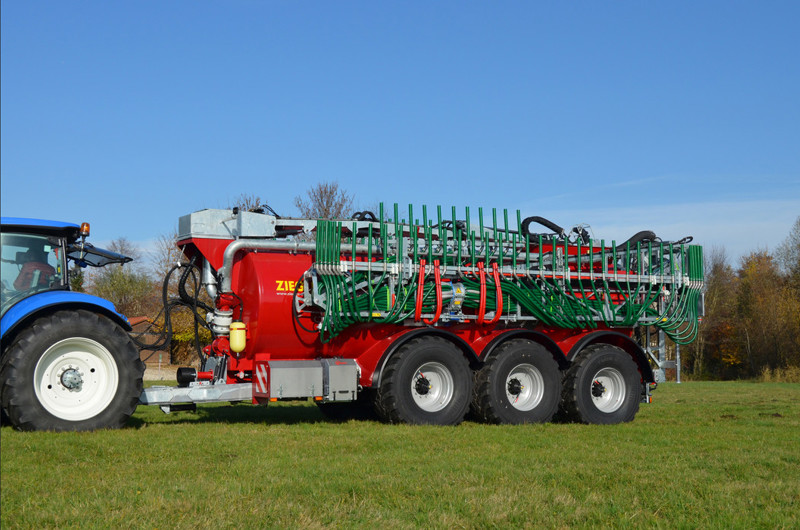

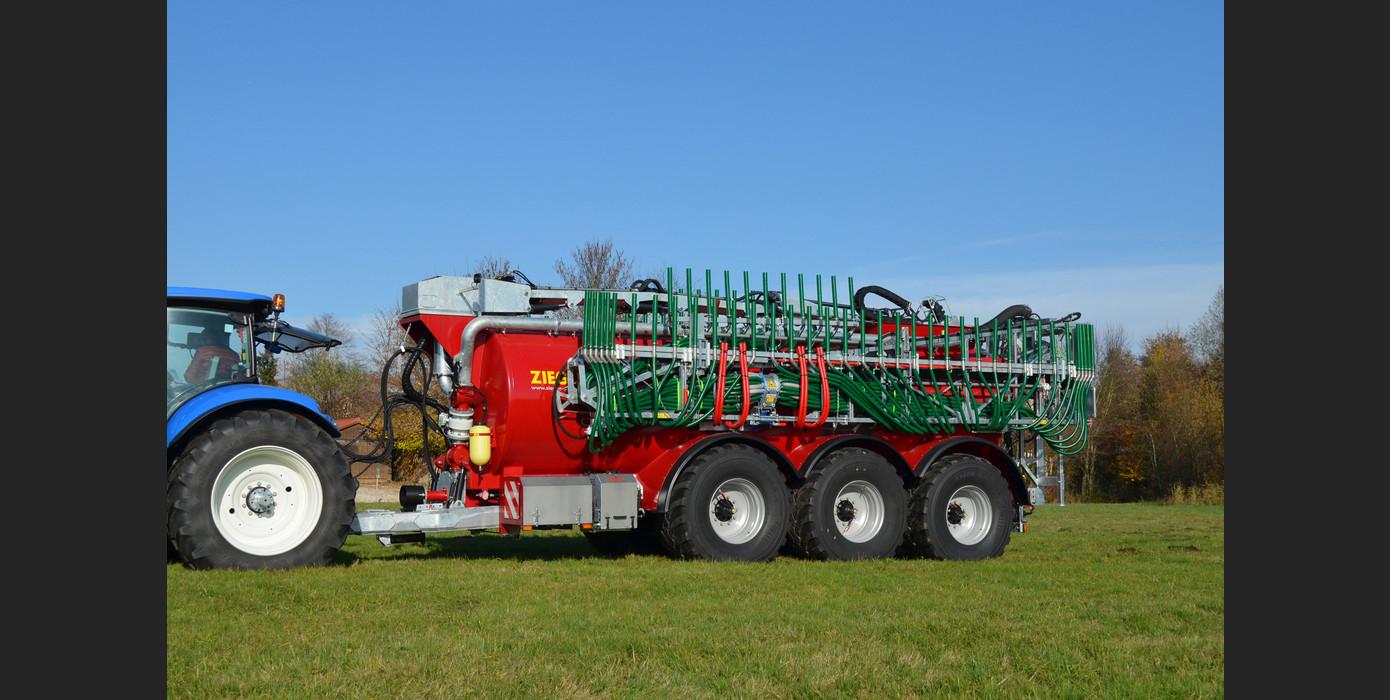

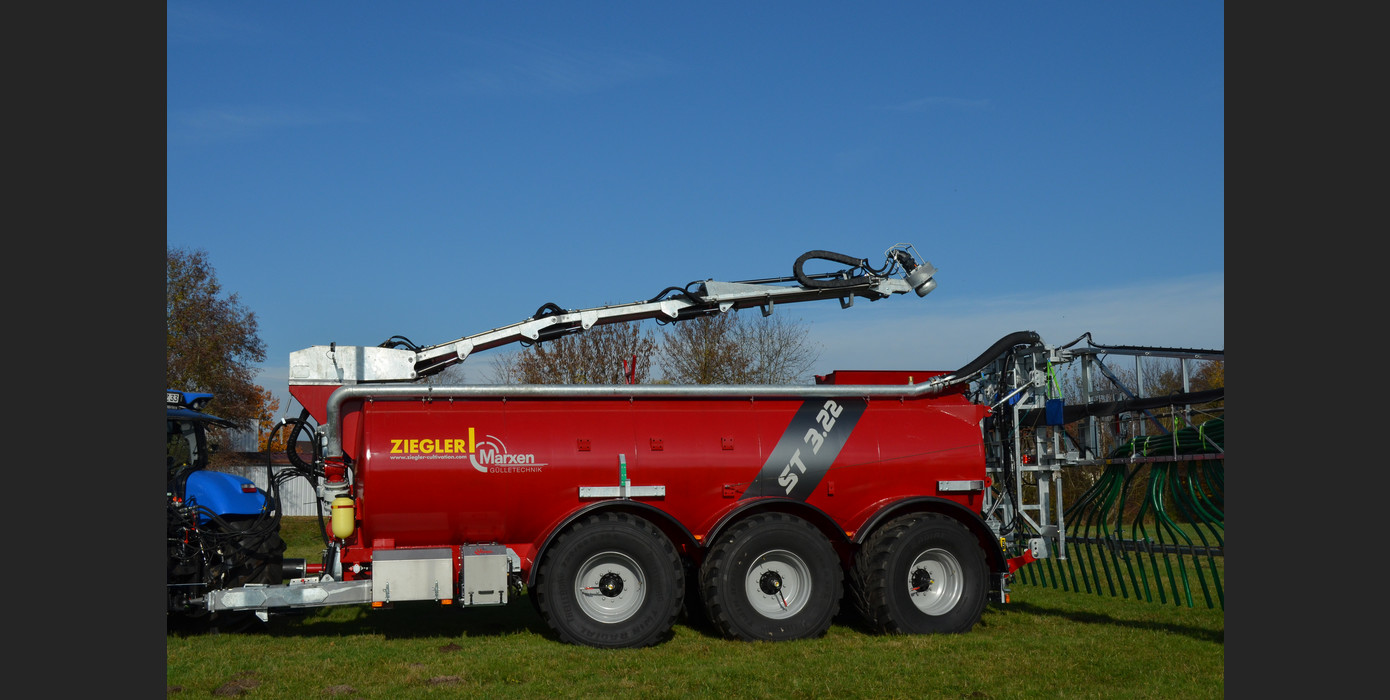

A tanker trailer side view

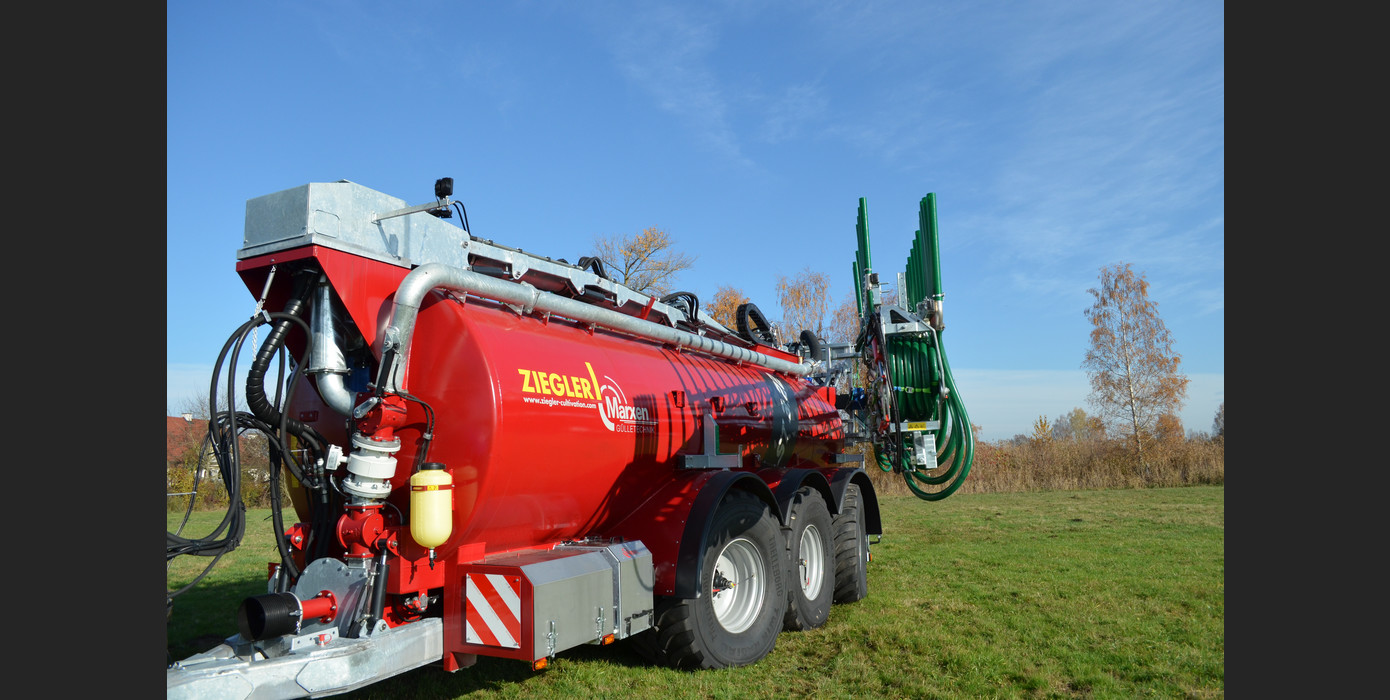

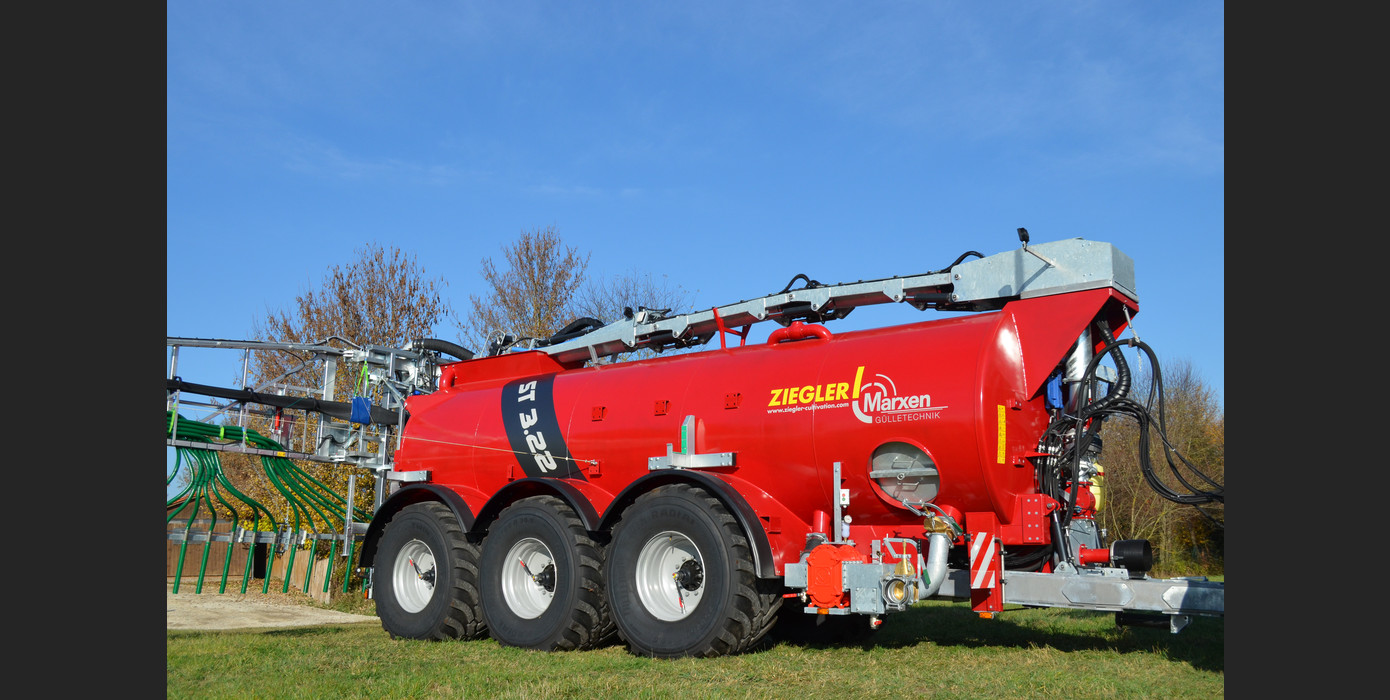

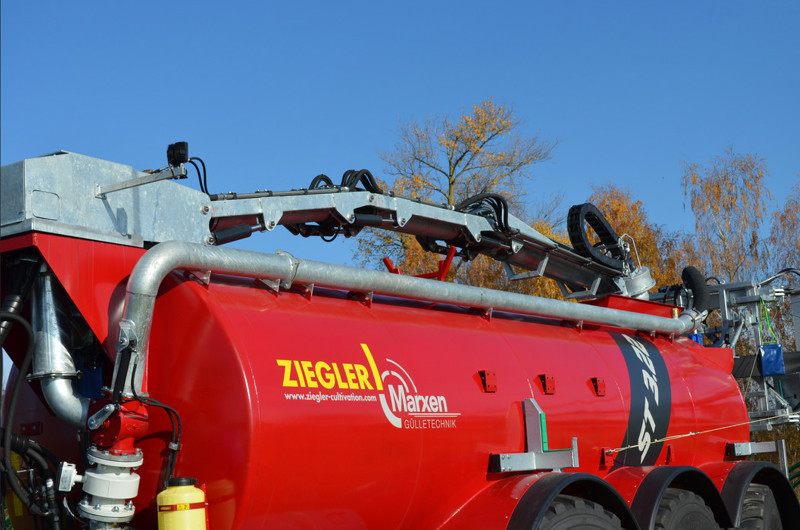

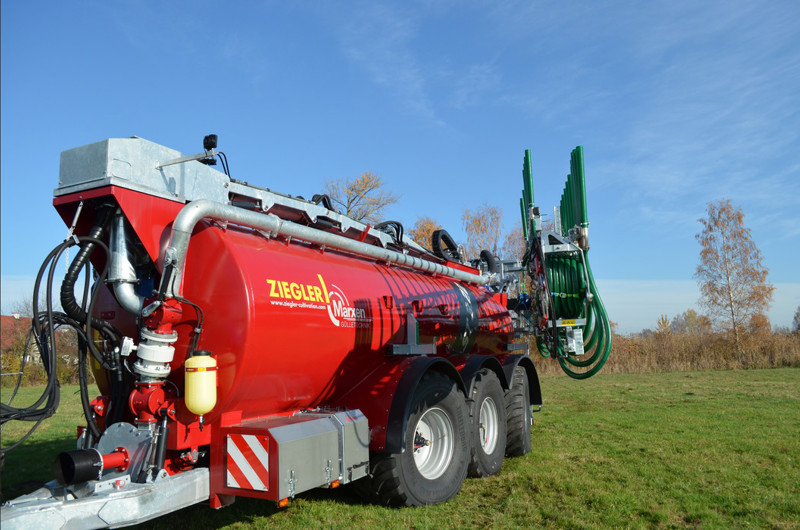

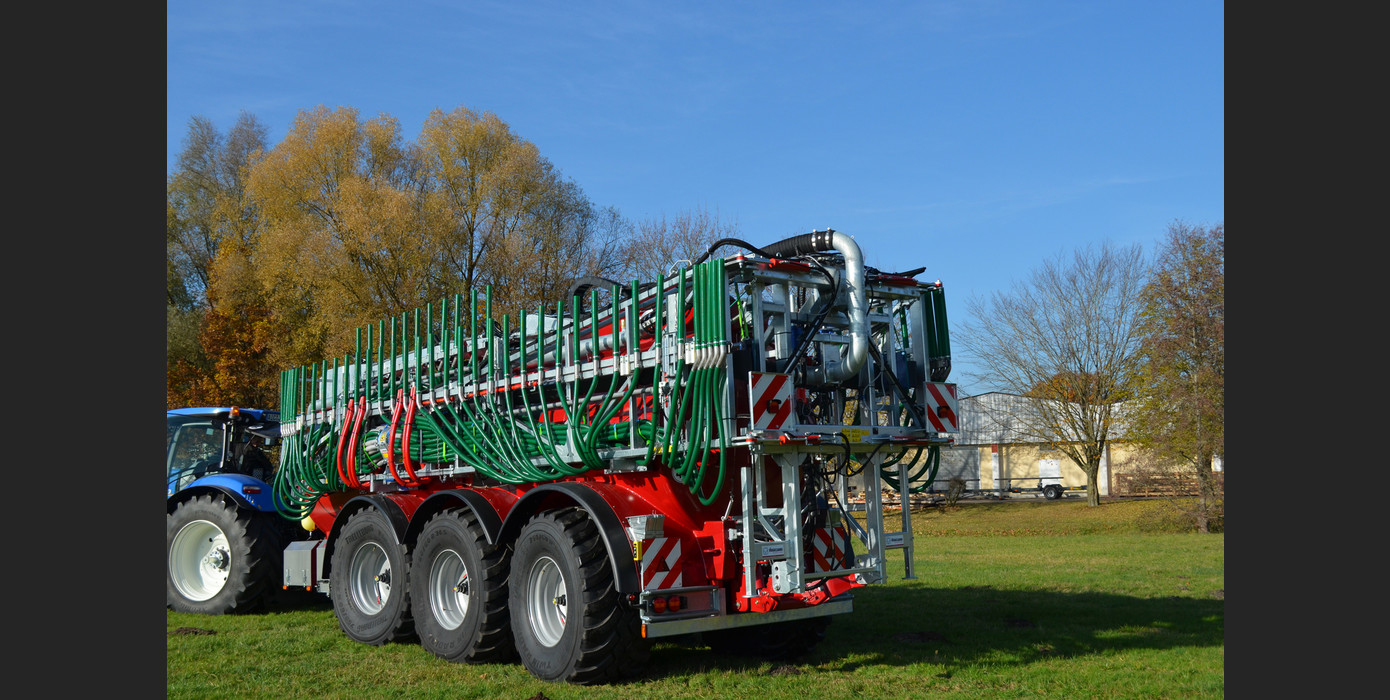

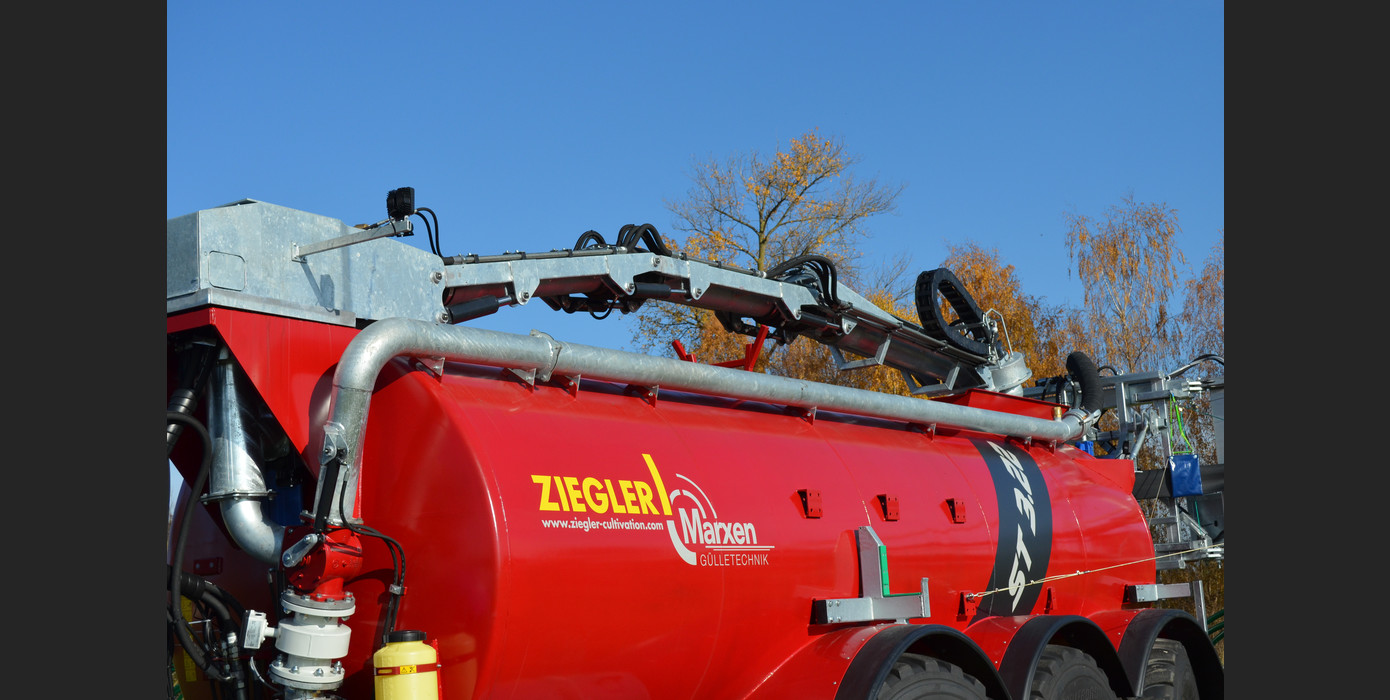

PROFI ST (LM PUMP TANK TRAILER)

Developed for professional users, e.g. contractors and large farms, the ZIEGLER PROFI ST can be equipped with a variety of different dribble bar or trailing shoe systems and has been designed for challenging applications. These highly-developed and performance oriented machines have low operation and maintenance costs.

Features and Specifications

  • Pump tank trailer from 14 to 30 m³ volume
  • Tridem or tandem axle (depending on volume)
  • Many options in sectors chassis, hitch, filling etc.
  • Liquid manure tank with a large basic equipment
  • Two chamber system with filling from below
  • Filling pump with 12,000L output
  • Hydraulically-suspended chassis ( Tridem with retractable axle )
  • Intelligent pump system makes for low wear ( 5-fin rotary piston pump )

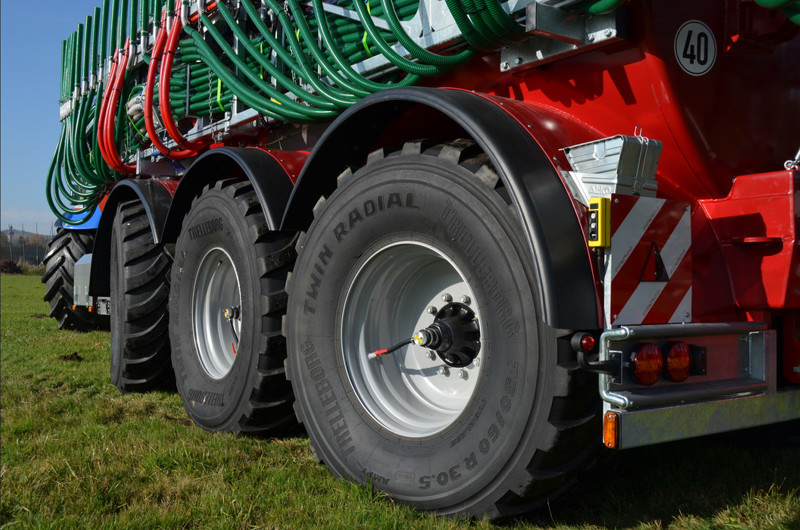

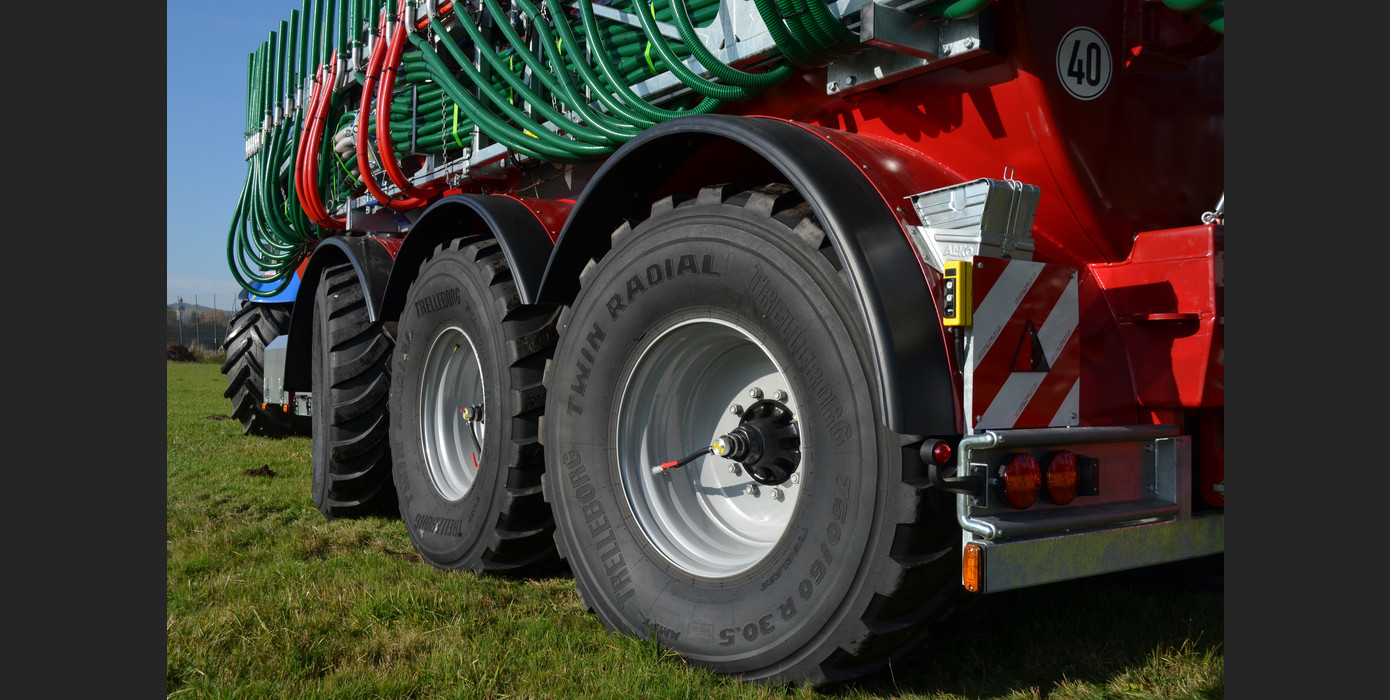

  • BPW axles 150mm with 410x180 mm brakes
  • Electronic forced steering

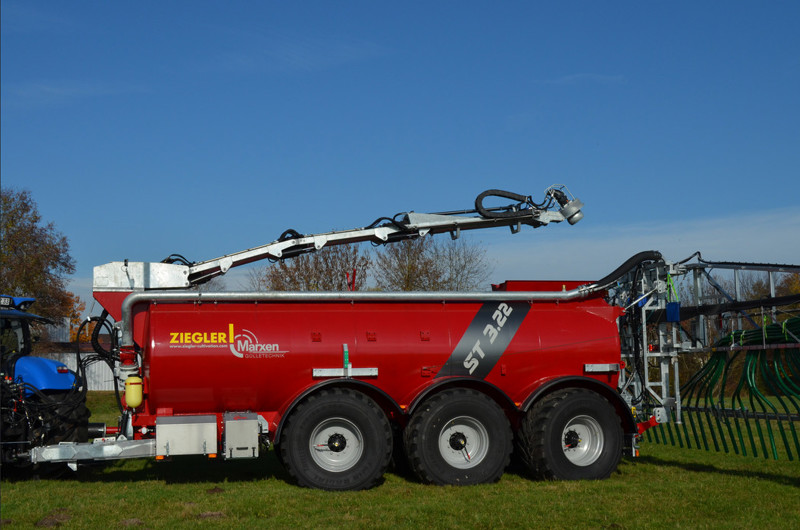

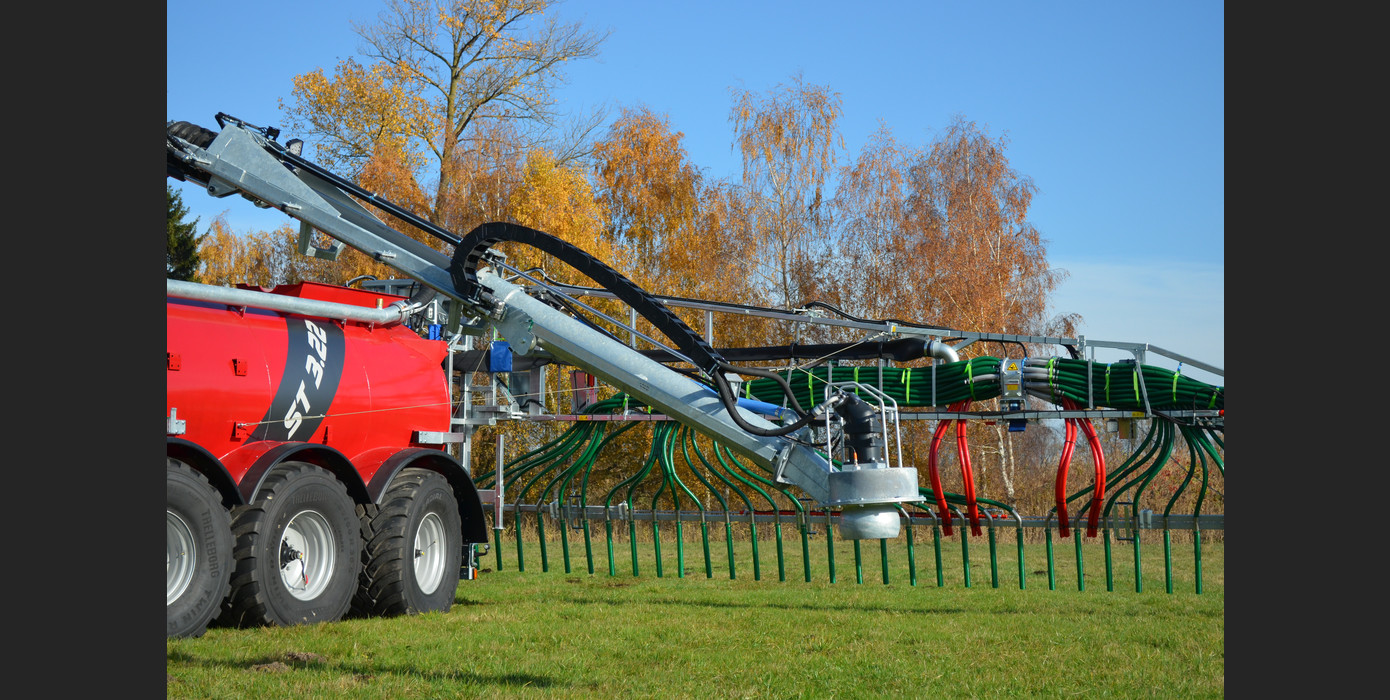

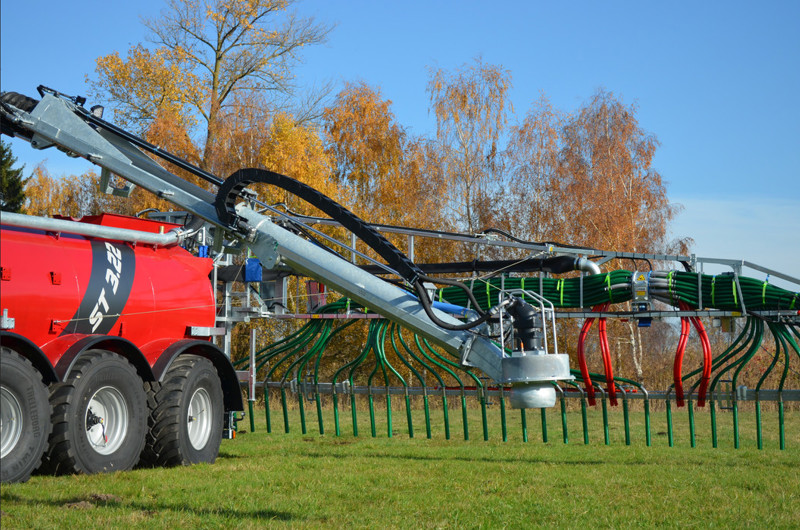

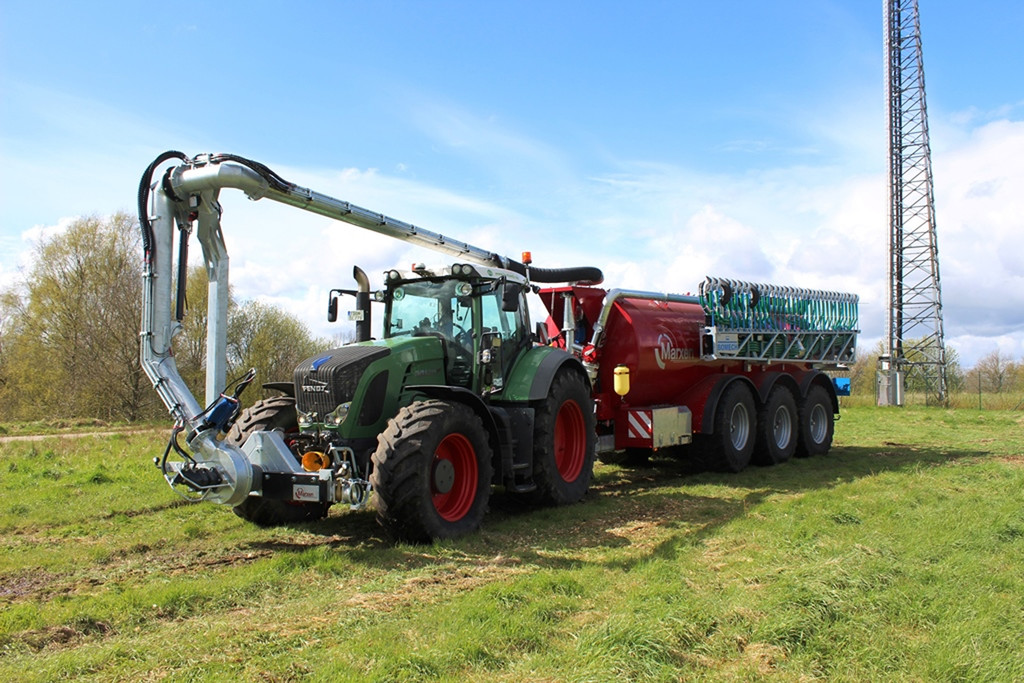

  • Vacuum arm with LED lighting and camera (series )
  • 6t rear end lifting unit; optional 9t possible
  • Fully-fledged ISOBUS control with all usual functions



Type Volume Axle Tank Length Total Length
PROFI ST 2.14 14 m³ 2 1.7 m 7.0 m 8.3 m
PROFI ST 2.16 16 m³ 2 1.8 m 7.0 m 8.3 m
PROFI ST 2.18 18 m³ 2 1.9 m 7.0 m 8.3 m
PROFI ST 2.20 20 m³ 2 2.0 m 7.0 m 8.8 m

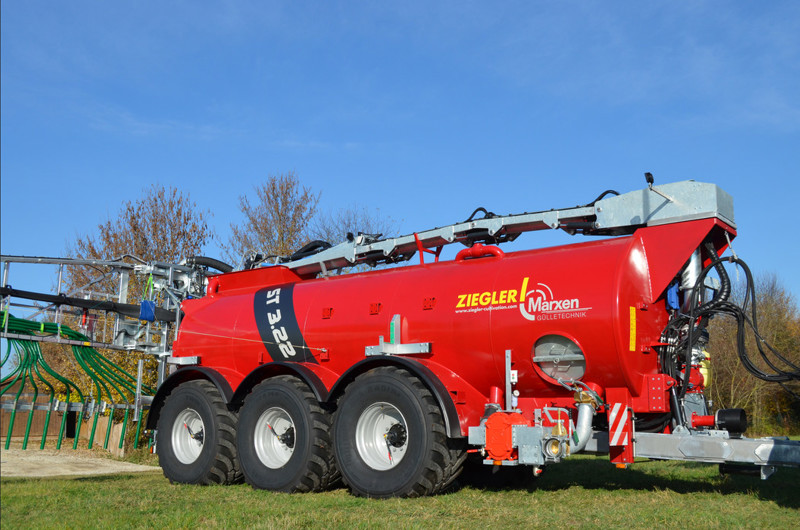

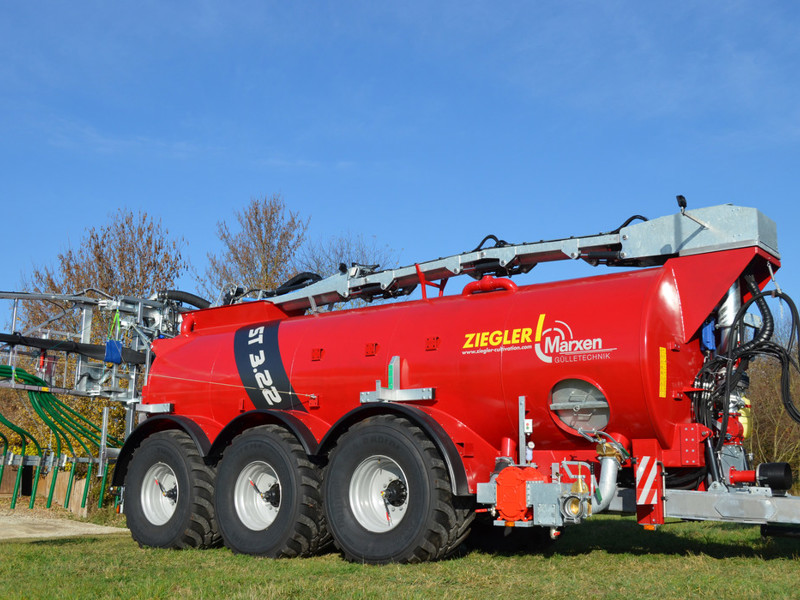

PROFI ST 3.22 22 m³ 3 2.0 m 7.4 m 9.7 m
PROFI ST 3.25 25 m³ 3 2.0 m 8.4 m 10.7 m
PROFI ST 3.28 28 m³ 3 2.1 m 8.4 m 10.7 m
PROFI ST 3.30 30 m³ 3 2.2 m 8.4 m 10.7 m
