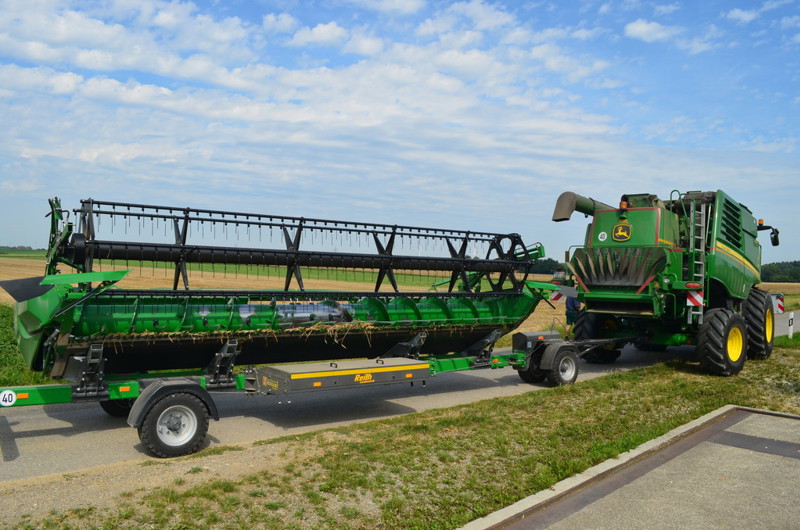

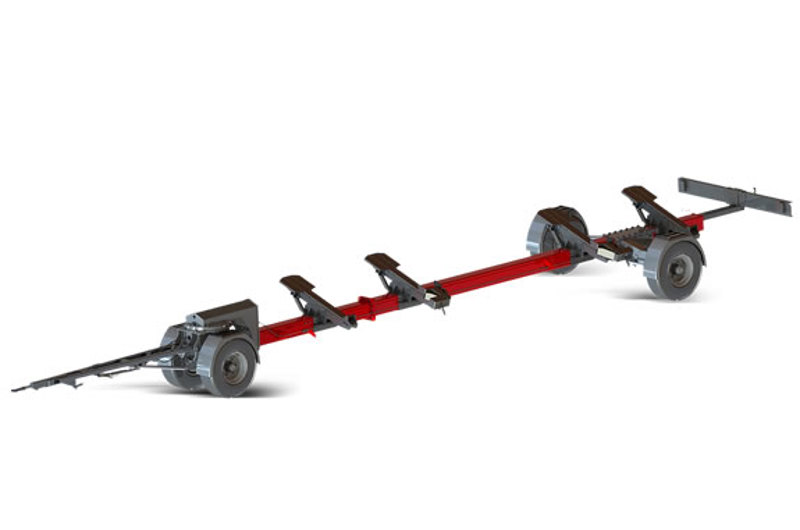

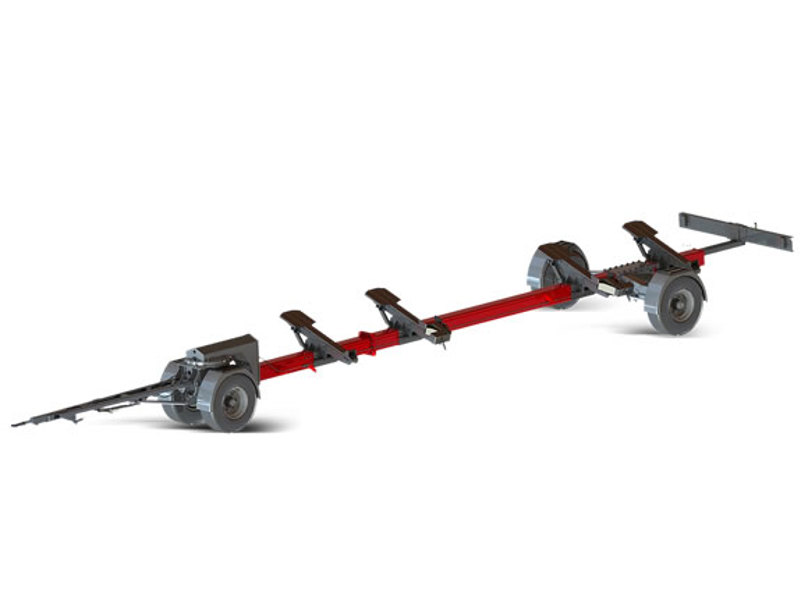

The ZIEGLER 2-axle trailer with stable live ring at the front axle guarantees maximum stability, a small turning cycle and smooth towing. Our 2-axle trailers can transport harvesting attachments with working widths of up to a max of 10.7 m and grant a permissible total weight of 6 tons. Due to the movable axle and freely movable supports, this model can be adjusted to carry almost every current cutting system.


  • Models for almost every header
  • V-interlocking for easy header drop-off
  • Painted to correspond to harvester (without additional charge)
  • Galvanised supports and interlockings
  • Flexible rear light carriers
  • Bearing load: 3,000 kg
  • Axle load: 3,000 kg


  • Storage box
  • Reflector kit
  • Side lighting kit
  • Rotating beacon
  • Positioning aid for cutting system’s storage
  • 22 PR Tyres
  • Tool box
  • Spare wheel carrier
  • Complete wheel cover
  • 40 km/h arrangement with mudguards

  1-axle 2-axle 4WT Tandem
Permitted front axle load 600 kg 3,000 kg 3,000 kg 600 kg
Permitted back axle load 3,000 kg 3,000 kg 3,000 kg 3,000 kg
Permitted total weight 3,600 kg 6,000 kg 6,000 kg 3,600 kg
Maximum width header 7.7 m 10.7 m 12.5 m 9.5 m
Brake Option: parking brake Overrun brake Overrun brake Option: hydraulic brake
Option 30km/h 40km/h 40km/h
